Intelligent Navigation Terminal UVEOS "HORIZON A-2.1.2" GTIA.464425.001-02

Available for Import

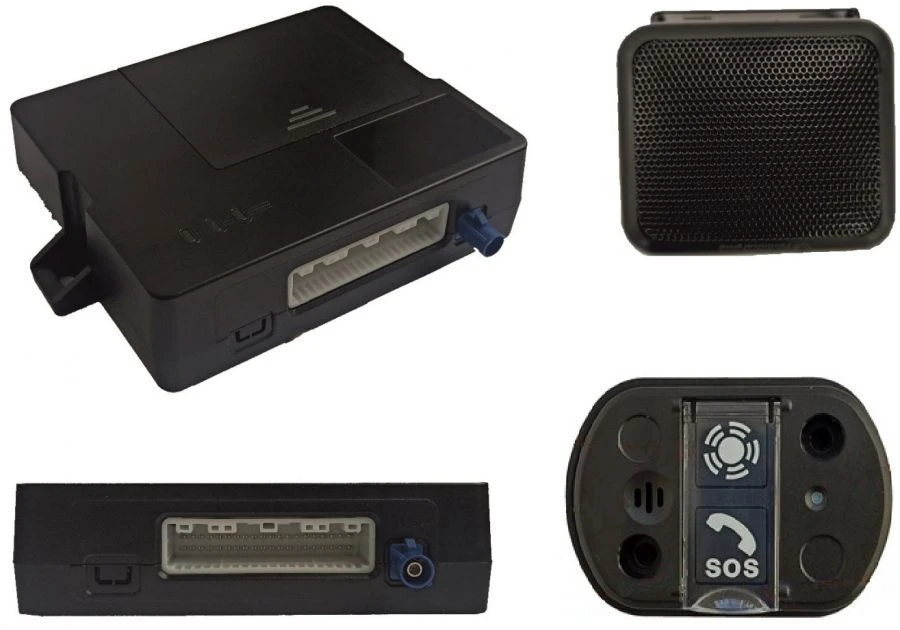

Intelligent Navigation Terminal UVEOS "HORIZON A-2.1.2" for Precise Vehicle Tracking

Emergency Navigation Devices

Manufacturer: CJSC GK "NAVIGATOR"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Intelligent navigation terminal UVEOS "HORIZONT A-2.1.2" GTIYA.464425.001-02 is designed to determine the coordinates, speed and direction of movement of the vehicle using signals of global navigation satellite systems, initiation in automatic or manual mode and transmission of a message about the vehicle in case of road traffic and other accidents, and to provide two-way voice communication with emergency operational services via mobile radio telephony networks and (optionally) satellite communication. Intelligent navigation terminal UVEOS "HORIZONT A-2.1.2" GTIYA.464425.001-02 (hereinafter - the product) refers to devices for calling emergency operational services, installed on vehicles of categories M and N in accordance with the requirements of the technical regulation of the Customs Union "On the safety of wheeled vehicles" (TR TS TS 018/2011) and meets the requirements of this technical regulation.

Specifications

GSM frequency bands

3G (900/2100) MHz; 2G (900/1800) MHz

Number of tracking channels of GLONASS/GPS/SBAS/Galileo receiver

44 pcs

Time interval of navigation data update

Accuracy (at confidence level 0.95) of determination of planned coordinates, not more than

15 m

Accuracy (at confidence level 0.95) of height determination, not more than

15 m

Accuracy (at confidence level 0.95) of velocity determination

0.1 m/s

Searching (detecting) GNSS signals at the level of useful signal at the antenna input (at the input of the antenna amplifier)

minus 163 dBW

GNSS signal tracking and navigation solution output at the level of useful signal at the antenna input (at the input of the ante

minus 180 dBW

UMTS frequency range

900/2100 MHz

Internal non-volatile memory

2 Gbit.

The product operates from the vehicle's power supply system with a nominal voltage of

12 V or 24 V

Capacity of the built-in battery - not less than

1800 mAh

Nominal battery voltage

3,7 ?

Number of digital outputs

3 pcs

Number of digital inputs

2 pcs

Supported interfaces

RS-485 (1 pc.), CAN (2 pcs.)

Product life

7 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
