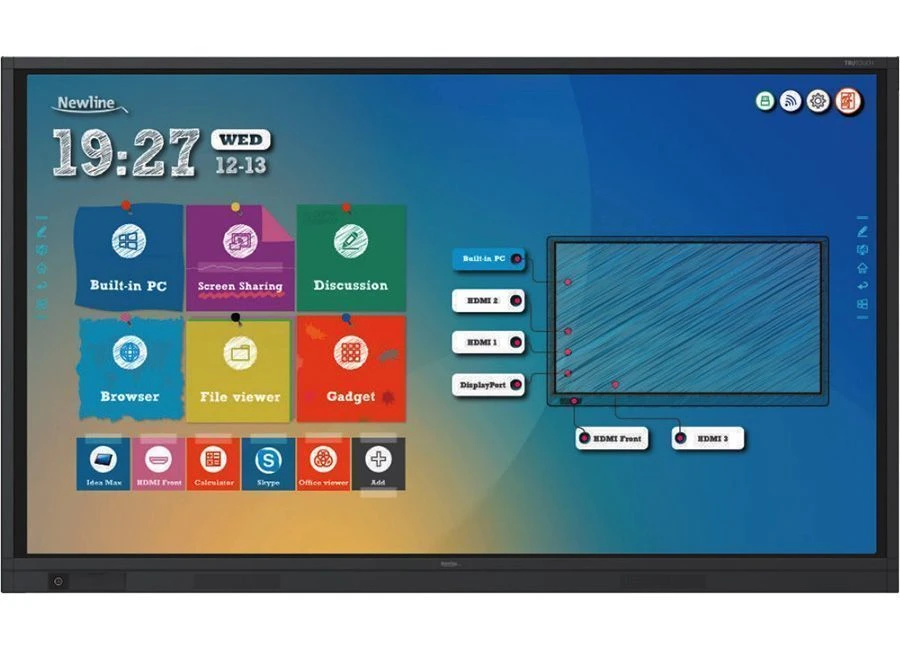

Interactive Touch Panel Newline TT-7521RS/RU for Educational Activities

All-in-One Computing Devices

Manufacturer:QUANT LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The computer system in the form factor of a monoblock with a liquid crystal touch screen monitor diagonal 75 inches (190 cm) is designed for use in educational activities in educational institutions (kindergartens, schools, universities, training centres) and organisations. It can be used for organising video conferences and presentations in commercial and governmental structures. Supplied with pre-installed basic software, which can be additionally extended. An optional built-in computer (available separately) can be installed. Mounted on the wall (standard VESA 800x400 mm) or rack (purchased separately).

Specifications

Panel weight

50...60 kg

Illumination type

LED

Panel width

1700...1800 mm

Panel height

1000...1100 mm

Panel thickness

95...110 mm

Operating conditions

Operating temperature 5 to 45 degrees Celsius, relative humidity 5-70% (non-condensing).

Diagonal size

Horizontal screen resolution, pixel

3840

Number of touch points

20 pcs

Storage capacity of the embedded computing unit

16...128

RAM capacity of the embedded computing unit

3...16

Availability of a built-in speaker system

Built-in speakers 15W (×2)

Integrated light sensor for automatic backlight brightness correction

Armoured glass

Screen vertical resolution, pixel

2160

Screen brightness, cd/m2

370...450

Static screen contrast

4000:1

Screen matrix response time (gray to gray), ms

6.5

Sensor response height from the screen surface

1...3 mm

Touch sensor response time, ms

Touch sensor resolution

1 mm

Number of styluses supported simultaneously

20 pcs

Number of styluses supplied

2 pcs

Number of built-in Ethernet ports for connecting additional devices

2 pcs

Number of HDMI inputs on the front panel for connecting external devices

1 pcs

Number of free USB Type A ports on the front panel

3 pcs

Number of available USB 2.0 Type A ports

1...9 pcs

Number of USB 3.0 ports

0...4 pcs

Number of USB 3.0 ports and above of the auxiliary computing unit

1...4 pcs

Number of USB 2.0 ports of the auxiliary computing unit

1...6 pcs

Number of audio outputs

2 pcs

Number of line level audio inputs

1 pcs

Number of microphone level audio inputs

1 pcs

Maximum supported RAM capacity of the additional computing unit

DDR RAM version of the auxiliary computing unit

RAM frequency of the additional computing unit

1...2

Maximum supported storage capacity of the auxiliary compute unit

512

Number of HDMI outputs of the auxiliary computing unit

1...3 pcs

Anti-reflective safety glass

Armoured glass

Tempered safety glass

Armoured glass

Built-in touch object recognition functions

Armoured glass

Ability to use the palm of your hand as an erasing tool

Armoured glass

Ability to ignore palm taps on the screen

Armoured glass

Type of stylus for working with the panel

Passive

Compatibility

Windows, Android, Mac OS, Chrome OS

Availability of wireless image transfer function from Windows-based devices

Armoured glass

Availability of wireless image transfer function from MacOS-based devices

Armoured glass

Availability of wireless image transfer function from iOS devices

Armoured glass

Availability of wireless image transfer from ChromeOS devices

Armoured glass

Availability of wireless image transfer function from Android devices

Armoured glass

Wired Ethernet connectivity

Armoured glass

Ability to connect to Ethernet wirelessly (Wi-Fi)

Armoured glass

Remote power-on capability

Armoured glass

Remote control and monitoring via Ethernet

Armoured glass

Remote control and monitoring via RS-232

Armoured glass

Fanless cooling

Armoured glass

Remote control included

Armoured glass

Attachment included

Optional

Availability of built-in computing unit

Armoured glass

Availability of a slot on the housing for installation of an additional computing unit

Armoured glass

Supports 3840x2160 pixel resolution (at 60 Hz)

Armoured glass

Availability of SSD

Armoured glass

Type of sensor technology

1)top with top linkage, bottom with bottom 500mm 2)top rigidly fixed, bottom 850mm on top linkage(Lightweight) 3)side one-piece on top linkage. 4)side one-piece up to 1000mm on lower linkage.5)side one-piece fixed.

Number of megapixels on the screen, Mpixel

8.29

Internal slots and connectors

OPS

External connectors

HDMI,USB,VGA,SPDIF,Mic,AudioIn,AudioOut,RS232,RJ45

Monitor matrix type

LCD

Internal power supply

400 W

Connection interface

LAN,WiFi,RS232,HDMI,USB

Display diagonal

Availability of an additional computing unit

Optional

Type of product according to PP RF 616

Computational electronic digital machines containing in a single housing a central processing unit and an input and output device, combined or not, for automatic data processing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
