Available for Import

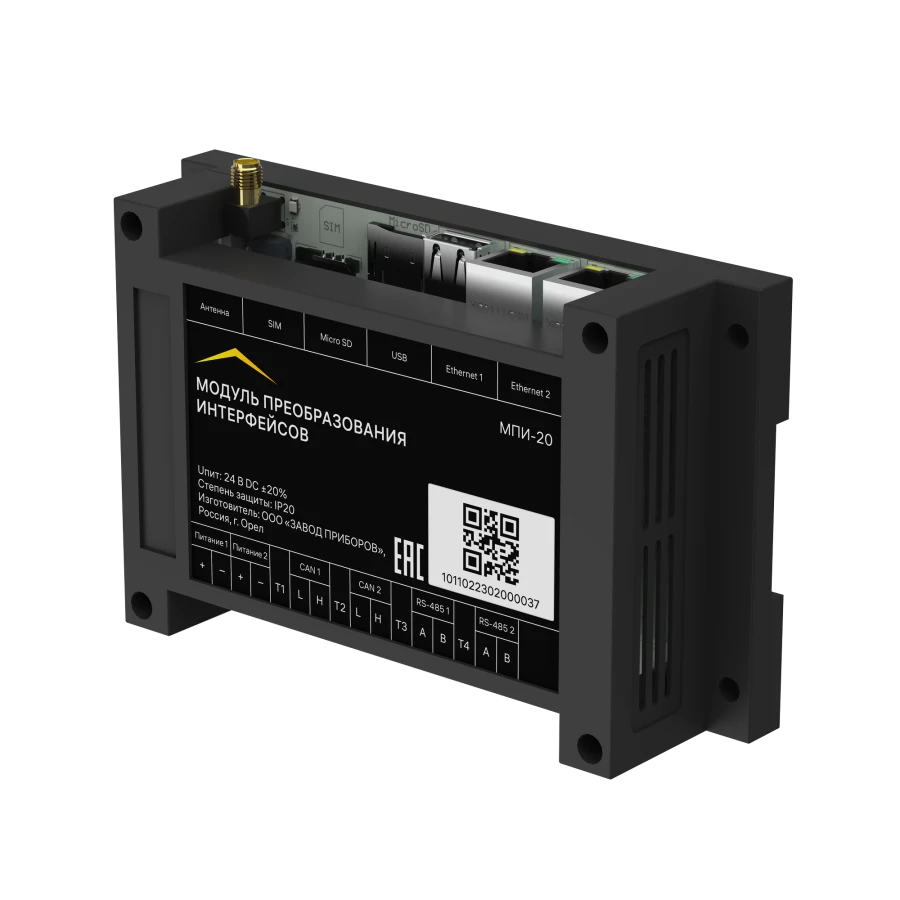

Interface Conversion Module MPI-20 "RUBETEK" for Fire Alarm Systems
Manufacturer:
RUBETEK RUS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Interface Conversion Module (ICM) is designed for interfacing fire addressable analogue fire control and monitoring devices with RCP-03 control panel, as well as with PPK in Remote mode and output them to the IoT system.ICM is designed for indoor installation, in places protected from atmospheric precipitation, aggressive media and dust, as well as in especially explosion and fire hazardous premises.
Specifications
Power supply from a DC source with voltage
24 V
Consumption current
0.25 A
Communication interface
CAN, RS485, GSM, Ethernet, USB
Maximum cable length of CAN interface
100 m
Number of CAN interfaces
2 pcs
Number of Ethernet interfaces
2 pcs
Number of RS-485 interfaces
2 pcs
Presence of microSD slot
Got it
Operating temperature range
-10...55 °C
Relative humidity at + 40 deg. ?
0...93 %
Degree of enclosure protection
IP20
Dimensions (L x W x H), mm
145x90x41
Weight, not more
0.22 kg
Average service life
10 year
Average MTBF
60000
Probability of failure-free operation in 1000 h
0.98
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
