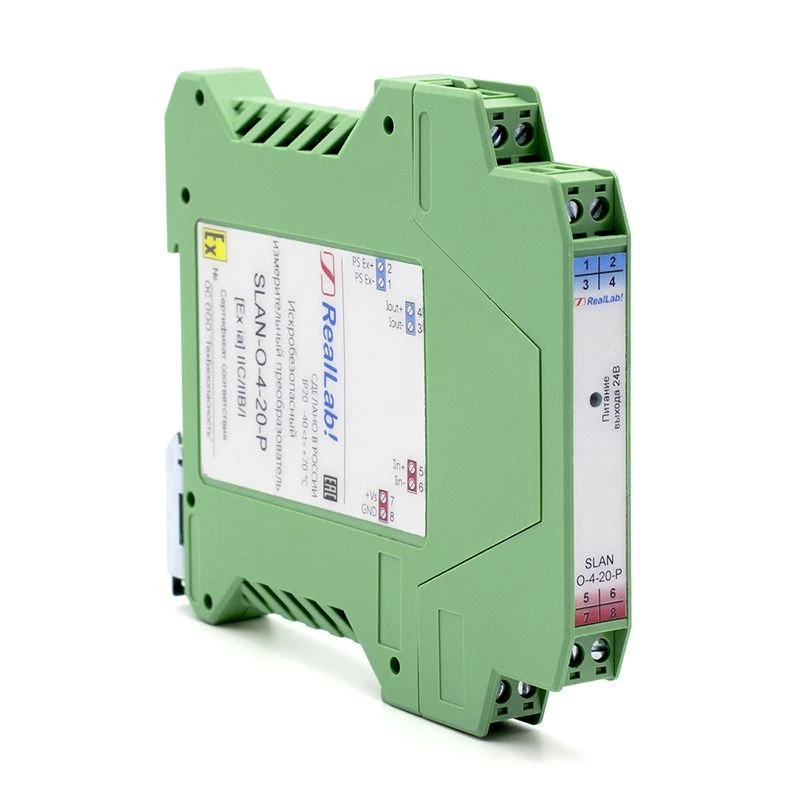

Intrinsically Safe Signal Converter 4-20 mA for Hazardous Areas

Purpose: intrinsically safe transmission of current signal from the explosion-proof zone to the explosion-proof zone Intrinsic barrier type: galvanically insulated active barrier Signal type/sensor: current 4-20 mA Connection: 1 channel of analogue input of active signal 4...20 mA (passive input of the converter without power supply for control device), 1 channel of analogue output of active or passive signal 4...20 mA Conversion error: basic conversion error not more than ±0.1 % Galvanic isolation: input, output, power supply - 2500 V Supply voltage: 10-30 V Power consumption: not more than 2 W Explosion protection marking: [Ex ia] IIC/IIB/I Operating temperature range: -40°C to +70°C Average MTBF: 120 000 hrs. Average service life, not less than: 12 years Overall dimensions (HxWxH): 99x12.6x113.6 Mounting: on DIN-rail Degree of protection: IR20 according to GOST 14254-2015 Warranty: 18 months.
