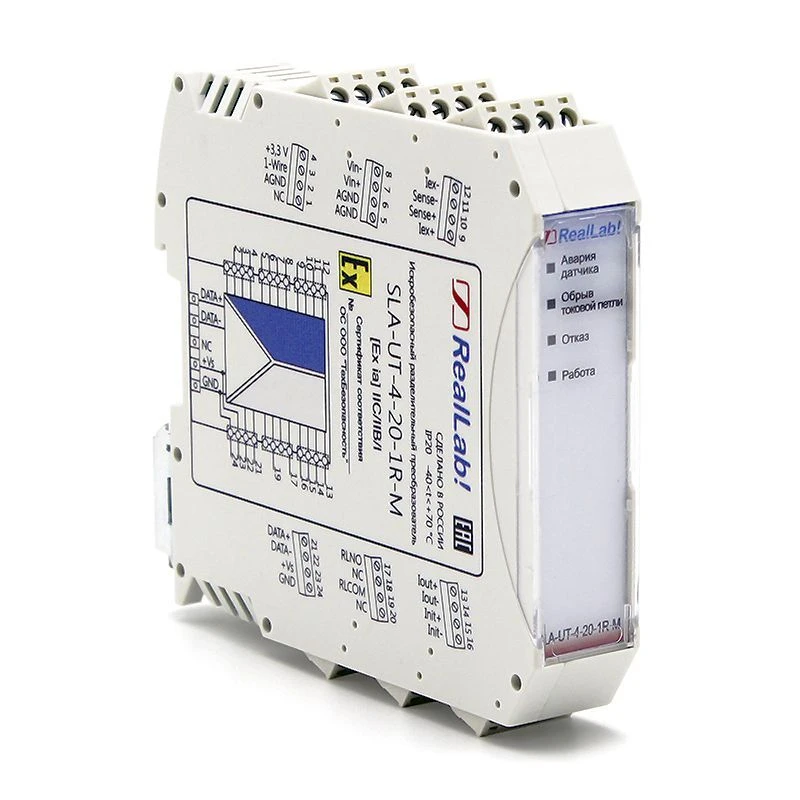

Intrinsically Safe Signal Converter for Temperature Sensors SLA-UT-4-20-1R-M - Reliable Measurement in Hazardous Areas

Purpose: conversion of signals from sensor (thermocouple, resistance thermocouple, DS18B20) located in intrinsically hazardous area into unified current signal 4-20 mA in intrinsically safe area. Intrinsic barrier type: active with galvanic isolation Signal type: voltage, resistance, 1-Wire Connection: 1 channel of analogue input of signals from: thermocouple type J, K, B, L, E, S, R, N, T, A1, A2, A3, resistance thermocouple type Pt50, Pt100, Pt500, Pt1000, 50P, 100P, 500P, 1000P, Cu50, Cu100, Cu500, Cu1000, 50M, 100M, 500M, 1000M, 100N, 500N, 1000N, sensor DS18B20. 1 analogue current output channel 4-20 mA 1 control relay output Power supply voltage: 10-30 V Power consumption: 2.7 W max.

Explosion protection marking: [Ex ia] IIC/IIB/I Operating temperature range: -40°C to +70°C Overall dimensions (HxWxH): 99.4x22.5x109 Degree of protection: IR20 Warranty: 18 months.
