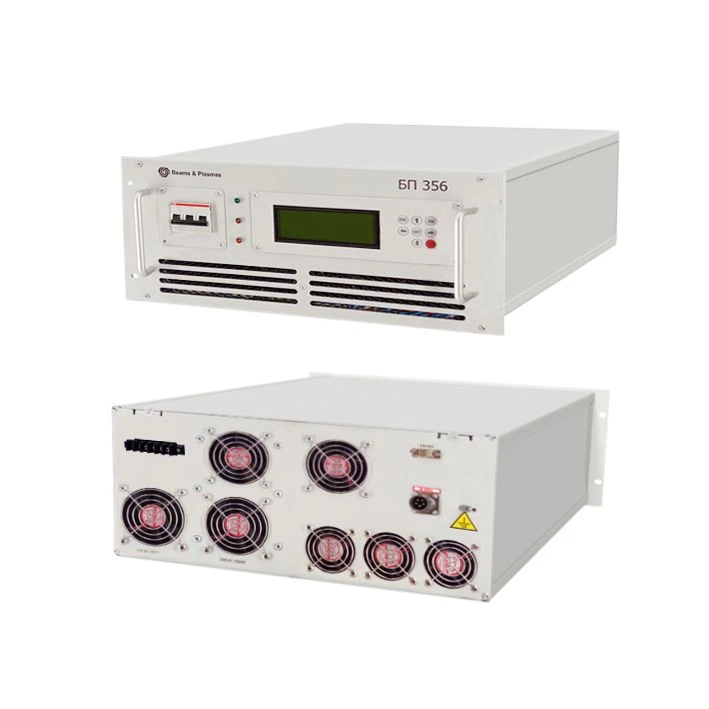

Ion Source Power Supply for Vacuum Coating Applications - 6 kW Performance

Electrical Interface Devices

Manufacturer: LVT+ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The unit is designed for regulated DC voltage power supply of ion sources with power up to 6 KW used in vacuum coating plants. The power supply unit is equipped with: <ul> <li>- RS-485 interface for communication with a computer</li> <li>Modbus RTU control</li> <li>voltage stabilisation mode with current limitation</li> <li>output voltage converter</li> <li>controller with display and controls</li> </ul> *The operating manual is available on request: LCMK.356.00.00.00.00.000 RE ION SOURCE POWER SUPPLY UNIT BP 356 It is allowed to deliver the device as a part of the installation without packing. On request, standard modernisation of the device by the manufacturer is possible.

Specifications

Assignment

Supply of regulated DC voltage power for ion sources up to 6 KW for use in vacuum coating systems.

Dustproof

Yes - The unit housing is made of metal and has no exposed live parts.

Front panel control

Got it

Type of construction

Built-in, Stationary

Warranty period

1 year

Climatic designs

GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2

Power supply voltage

380 ±10% V

Voltage regulation range

1000-3000 V

Current control range

0,2-2 A

Power control range

200-6000 W

Maximum power

6 kW

Maximum power output

6000 W

Stabilization modes

Voltage, current

Output voltage polarity

Positive

Accuracy of stabilized parameter maintenance, not worse than

20 %

Interface

RS-485

Data transfer protocol

ModBus RTU

Cooling

Air

Overall dimensions, (length x width x height)

5U 485 x 485 x 221 mm

Weight, not more

20 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
