Jet-025.01 Hydroabrasive Cutting Head for Efficient Cutting Applications

Metalworking Machine Parts

Manufacturer: Far Eastern Federal University

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

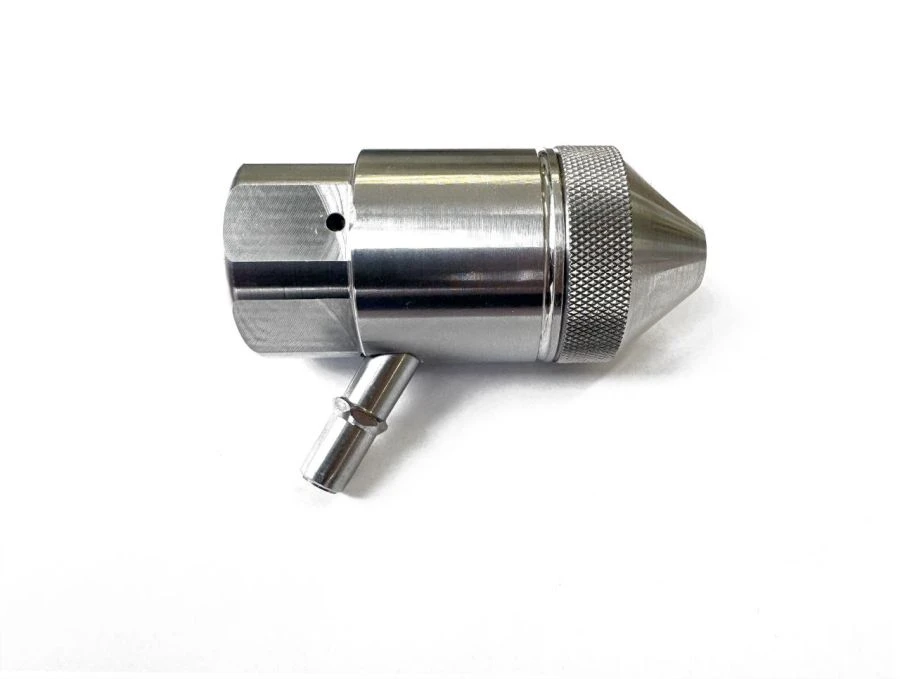

Hydroabrasive cutting head Jet-025.01 is designed for cutting with hydroabrasive mixture as a part of the machine of hydroabrasive cutting. It consists of a mixing chamber with a mandrel pressed in it and a nozzle made of polycrystalline diamond with a through hole with a diameter of 0.2mm, a coupling nut with a thread 9/16-18UNF. The product also includes a mixing tube clamp collet, sand supply tube and mixing chamber.

The housing has a minimum of 2000 hours durability. Maximum jet pressure during cutting head operation - up to 410 MPa. Maximum jet velocity - 914 m/s.

Specifications

Type of product according to PP RF 616

Parts and accessories for metal working machines

Internal hole in the diamond insert

0.35 mm

Thread for connection to the water supply connection

3/4-16UNF

Maximum jet pressure during cutting head operation

Up to 410MPa

Resistance of the case

At least 2000 hours
