Available for Import

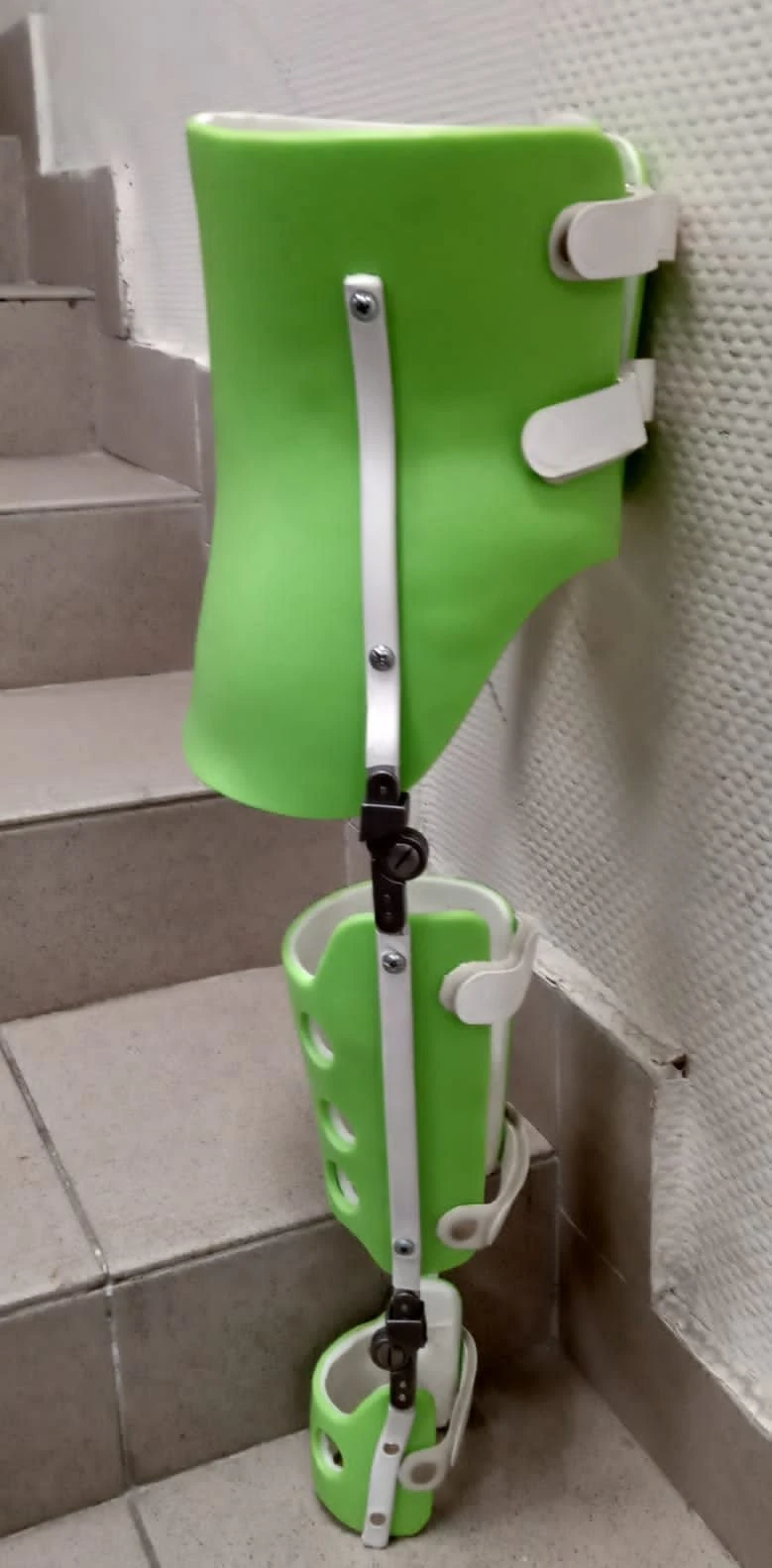

Knee and Hip Joint Orthopedic Devices for Stabilization and Correction
Manufacturer:
IPR "ORTOTIS" LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Apparatus for knee and hip joints fixing, corrective, sleeves are made of high-temperature and low-temperature thermoplastic, with or without a softening layer of foam material (the type of material used depends on the individual characteristics of the patient), with the use of metal splints and joints, units (modules) and semi-finished products with improved properties. Manufacturing is individual, according to casts, permanent.
Specifications
Axis offset values in nodes
With load levels P1, P2 - without lock - 0 and 10 mm, - uniaxial with lock - 0 and 6 mm; With load levels P3, P4, P5, P6: - without lock - 15 and 16 mm, - uniaxial with lock - 6 mm; - biaxial with lock - 4 mm.
Angular displacement of the hip assembly splints in the sagittal plane from the zero position
95° to 110° in the bending direction and not more than 10° in the opposite direction
Axis displacement in unicondylar knee assembly without locking
From 8 to 12 mm in nodes with load levels P1, P2 and not more than 22 mm in nodes with load levels P3, P4, P5, P6.
Axis displacement in a locking unicondylar knee assembly
From 8 to 12 mm in nodes with load levels P1, P2 and not more than 20 mm in nodes with load levels P3, P4, P5, P6.
Angular movement of the splint foot in the sagittal plane from the zero position in the knee assembly
95° to 110°
Level of load on apparatus units
P1 - 25 kg, P2 - 45 kg, P3 - 60 kg, P4 - 80 kg, P5 - 100 kg, P6 - 125 kg
Completeness
Conforms to process documentation and order conditions
Material
Basic materials - sheets of polyolefin types PE, Foam materials (thermo-formed) are used as a softening layer; Unified assemblies made of metals.
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
