KST KR 16.16.9 Connection Box for Safe and Hazardous Areas

Available for Import

KST KR 16.16.9 Connection Box for Safe and Hazardous Applications

Electrical Gear Parts

Manufacturer:KST LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Junction box KST KR 16.16.9-SI-V-(0-5)BP/(0-5)BP Connection box KST KR 12.12.9-D-(0-3)BP/(0-3)BP Junction box KST KR 16.16.9-CI-(0-5)BP/(0-5)BP Connection box KST KR 12.12.9-V-(0-3)BP/(0-3)BP Junction box KST KR 12.12.9-D.B-(0-3)BP/(0-3)BP

Connection box KST KR 12.12.9-(0-3)BP/(0-3)BP Connection box KST KR 12.12.9-SI-V-(0-3)BP/(0-3)BP Junction box KST KR 16.16.9-(0-5)BP/(0-5)BP Connection box KST KR 12.12.9-CI-(0-3)BP/(0-3)BP Connection box KST KR 25.25.12-(0-4)BP/(0-4)BP

Description

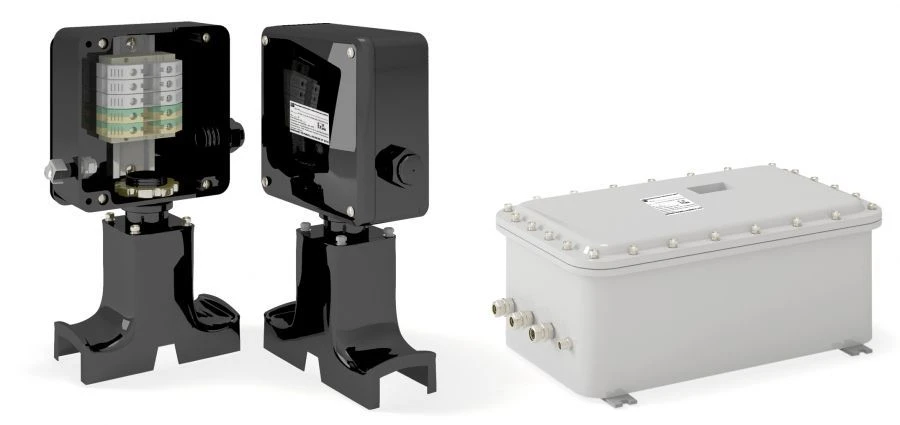

The junction box is used in normal and explosive zones 1 and 2. In a complete set: installed terminal block for disconnecting the cable. It has metal glands for armoured cables M25 or plastic cable glands M25 for unarmoured cables. Junction boxes are designed for: Connection to the power network of heating cables and heating cable sections, as well as for connecting heating cables to each other; Connection of electric heating control system cables to the power network; Connection and branching of power cables. It is possible to install directly on the pipeline.

Specifications

Housing material

Polyester, color black

Size

160x160x90

Assignment

Connection and distribution of electricity

Max. number of inputs

5 pcs

Installing an entry under the thermal insulation

Armoured glass

Grounding assembly

threaded rod

Availability of light and signal indication

Material of fasteners

Stainless steel

Operating temperature

-60...120 °C

Protection against external air.

IP 66/67

Max. voltage

~1000V, DC 250V W

Explosion protection marking

1Ex e llC, 1Ex d llC? 1Ex e llB, 1Ex e llB+H2

Sealing in the groove

Silicone rubber

UV resistance

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
