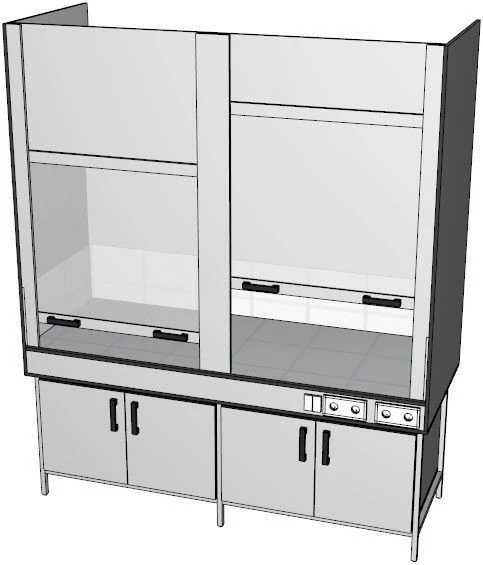

Laboratory Fume Hood SHV-2R for Safe Chemical Handling

Cabinet frame - all-welded, made of metal profile pipe 25x25mm, powder coating, colour RAL7035 (light grey). The supports are adjustable from 0 to 30 mm. The body of the working chamber and the lower cabinet is made of 16mm thick chipboard, light grey.

The working chamber is covered with two lifting screens made of armoured glass 5 mm thick. The screens can be easily lifted and fixed in any position thanks to a system of counterweights. The worktop is ceramic on the basis of MDF, thickness 26 mm, the joints are filled with acid-resistant grout.

The inner perimeter of the working chamber at a height of 300mm is ceramic tile. The height from the floor to the working surface is 880mm. The working chamber is equipped with an explosion-proof luminaire, the outlet flange on the roof of the working chamber is 200mm in diameter.

On the front panel there are two splash-proof sockets, a switch for the luminaire and an automatic circuit breaker. At the base is a chipboard cabinet with four blind doors. Inside, the cabinet is divided into 4 compartments, each with one tabbed shelf.
