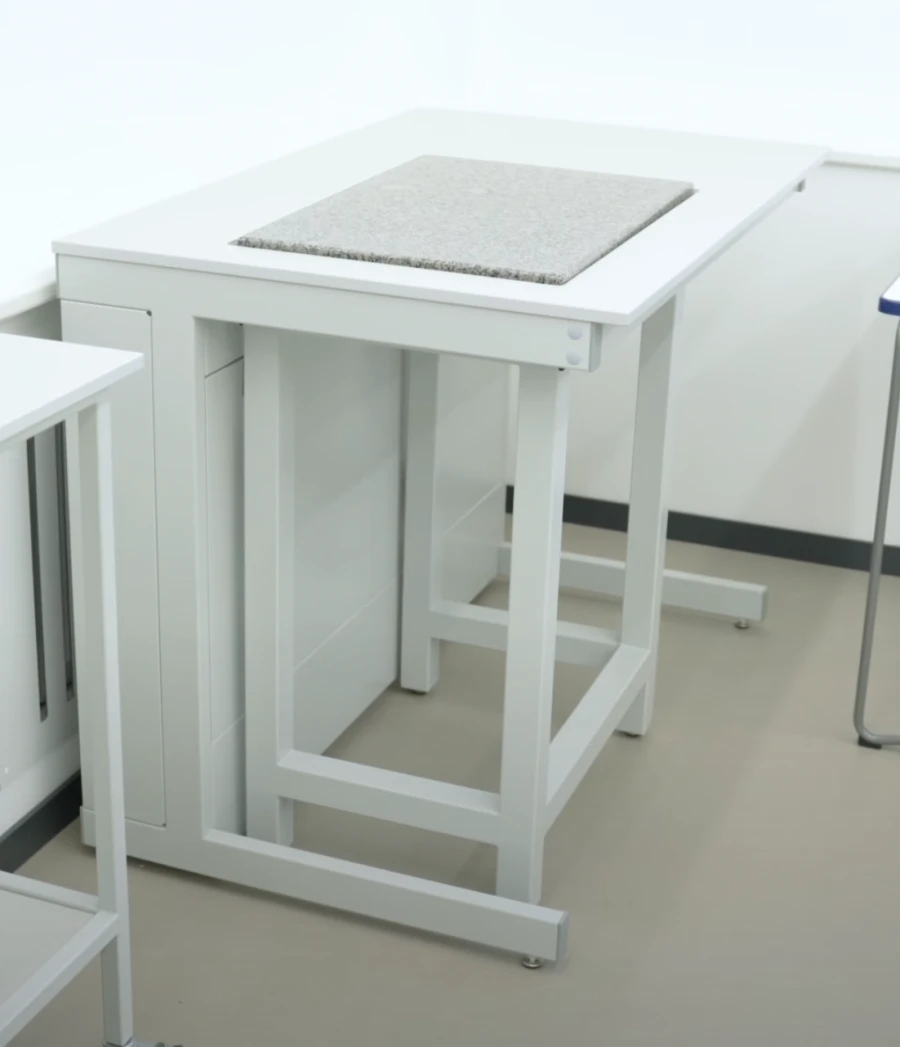

Laboratory Table for Work with Radioactive Substances - Model No. 23

Laboratory table and two anti-vibration tables built into it. The laboratory table should be based on a collapsible frame made of rectangular steel pipes (cross-section not less than 60x30x2 mm). The frames should be painted with epoxy-polyester powder paint.

To increase the rigidity of the table, transverse power elements located in the lower and upper part of the table shall be used. The antivibration table is based on a reinforced welded frame made of rectangular steel pipes (cross-section n 50x50x2 mm) painted with epoxy-polyester powder paint. Paint thickness is 80 microns.

The table is equipped with a hidden mechanism of smooth adjustment to compensate for unevenness of the floor (0-30 mm). A slab of natural polished granite (630x430x60 mm - ), mounted on anti-vibration dampers, is used as a working surface. Dimensions (DxHxH), mm: 1500x750x750 - deviation not more than 5%.
