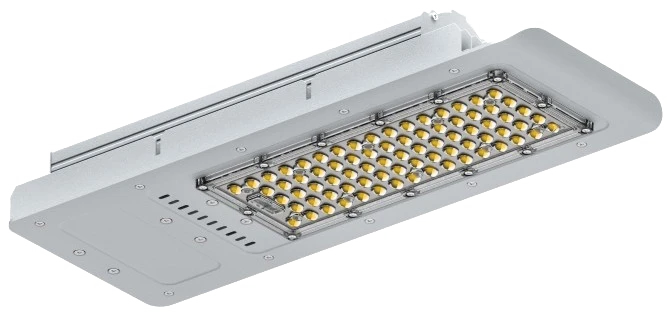

LED Street Light for Roads and Outdoor Areas BL-LD-3A-4

Available for Import

LED Street Light for Illumination of Roads and Outdoor Areas - BL-LD-3A-4

LED Lighting Fixtures

Manufacturer: ASTRA-CENTER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

LED luminaire series BL-LD-3A is designed for lighting of highways of categories A,B,C (according to SP 52.13330.2016), city streets, as well as for external lighting of enterprises and shopping centres. The body is made of aluminium sheet by stamping method and covered with heat dissipating powder paint. The design of the luminaire excludes the formation of ice mass in winter time, and in summer time due to natural precipitation, in the form of rain, will clean the luminaire from dirt and dust.

The driver is equipped with a block of protection against voltage fluctuations in the power supply network. The threshold of operation is 320-380 VAC. At the moment of connection, the driver circuitry ensures minimum inrush currents.

It is installed on the cantilever bracket or floor lamp support with diameter 48÷60 mm.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Type of supply current

AC/DC

Degree of protection (IP)

IP67

Upper operating temperature value

plus 50 °C

Lower operating temperature value

minus 60 °C

Color temperature

2700...6500 K

Power factor, greater than or equal to

0.9

Color rendering index (Ra), greater than or equal to

Supply voltage value

176...264 V

Mounting type

Console

Luminous flux

9425...13050 lm

Power consumption

65...90 W

Maximum length

497 mm

Maximum width

184 mm

Maximum height

104 mm

Maximum weight

4.2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
