Load-Bearing Beam Type 2-16.0-4000 for Safe and Efficient Lifting

Material Handling Equipment

Manufacturer: SAMSON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Traverse beam type 2-5,0-1000 Traverse beam type 2-16,0-6000 Traverse beam type 2-6,0-8000 Traverse beam type 2-0,63-8000 Traverse beam type 2-16,0-1000

Traverse beam type 2-16,0-3000 Traverse beam type 2-8,0-8000 Traverse beam type 2-6,0-5000 Traverse beam type 2-1,0-1000 Traverse beam type 2-6,0-1000 Traverse beam type 2-6,0-10000 Traverse beam type 2-8,0-1000 Traverse beam type 2-1,0-10000 Traverse beam type 2-5,0-3000 Traverse beam type 2-12,5-1000 Traverse beam type 2-12,5-3000

Description

"Lifting beams are necessary to distribute the load evenly between all load attachments, they protect the lifted load from compressive forces and ensure its safety when moving.

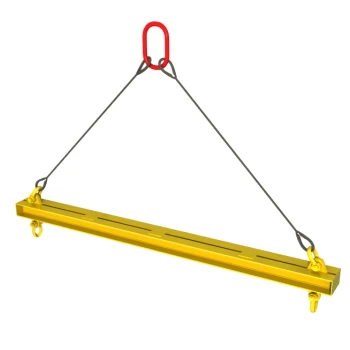

The traverse beam is a beam structure with two lugs on the edges of the beam for attaching the traverse beam to the hoist. Since the crosshead is attached to the hook by means of slings, this reduces the useful working height, therefore we recommend the use of the Type 1 crosshead in conditions of height restrictions.

At the same time, the scheme of slinging the traverse by two points allows to significantly reduce the metal intensity of the structure, which is important when selecting a traverse with a minimum dead weight while maintaining the load capacity.".

Specifications

Payload

16 t

Crosshead length

4 m

Diameter of the top eyelet bore

37 mm

Diameter of the bottom eyelet bore

30 mm

Product weight

184 kg

Designation

??002-16,0-4000

Manufacturer's item

30200049201
