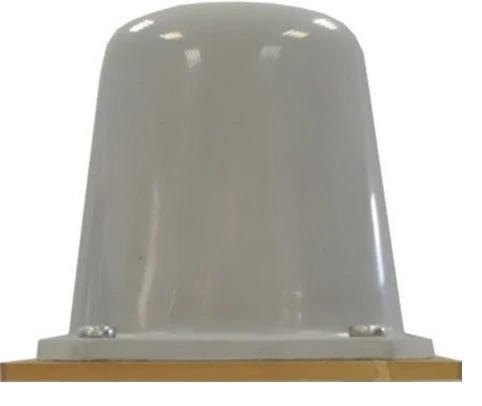

Locomotive Antenna AL2/450-2700/N KD ALVR.464651.050

Available for Import

Locomotive Antenna AL2/450-2700/N KD for Rail Vehicles

Antenna Equipment & Parts

Manufacturer: Radio Communication Laboratory LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Antenna locomotive AL2/450-2700/N CD ALVR.464651.050 is manufactured in accordance with the requirements of technical specifications ALVR.464641.050 TU, designed for operation on mobile objects of railway transport together with locomotive (transportable) radio stations of speech and/or data transmission, radio facilities of railway transport safety systems and in public networks in LTE/TETRA/GSM-R/GSM900/GSM1800/UMTS/WiMAX/Wi-Fi standards. It has an antenna and MSU for reception of satellite signals GLONASS/GPS.

Specifications

Polarization

Vertical

Weight

1.3 kg

Power supply voltage

13.2 V

Operating wind speed

432

Connector

N-type socket for metre and decimetre antenna and TNC-type plug for GLONASS/GPS

Power consumption

0.12 W

Equipment

Antenna, passport, packaging

Antenna gain with respect to the isotropic radiator

Not less than 5 dBi

Horizontal directional pattern

Close to circular with deviation not more than 3 dB

Wave impedance

SBVVBG ohm

Operating conditions

The antenna is designed for operation on all mobile objects of railway transportation in train radio communication networks in the following conditions: - ambient temperature from minus 50 C to plus 60 C; - relative humidity 93 % at temperature plus 2

VSWR

Not more than 1.5

Operating frequency range

453.0-469.0; 791.0-960.0; 1710.0-2170.0; 2400.0-2700.0 MHz

Degree of protection in operating position

IP66 according to GOST 14254-2015

Dimensions

(WxDxW) 181x185x110 mm

Maximum power

Constant input power W, not more (without using the built-in antenna GLONASS/GPS / / with the use of built-in antenna GLONASS / GPS) in the frequency ranges, MHz: 453,0-469,0 - 50//15; 791,0-960,0 - 50//10; 1710,0-2170,0 - 50//10; 2400,0-2700,0 - 5

Power supply voltage of the built-in MSHU

3.3...13.2 V

Current consumption of the built-in MSI

0.036 A

Gain factor of the built-in LFM

27...29

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
