Available for ImportLow-Floor Tram Vehicle Model 71-409 for Modern Urban Transport
Manufacturer:URALTRANS OJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

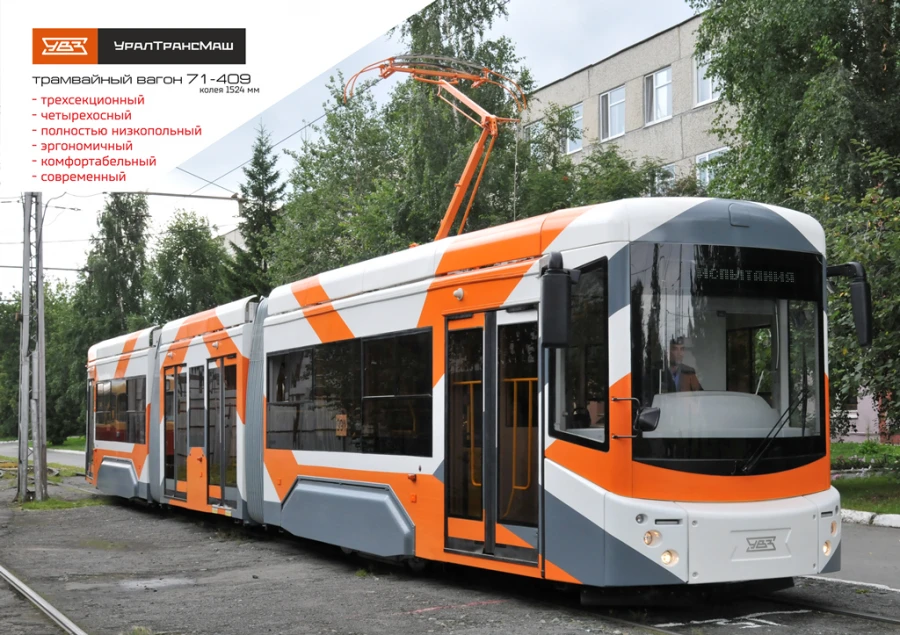

Tramway model 71-409 is a three-section articulated car with low floor level on the whole area of the saloon.
Specifications
Type of product according to PP RF 616
Self-propelled (motorized) streetcar passenger cars
Model
71-409
Track
1524 mm
Length
21900 mm
Width
2500 mm
Wheel diameter
706 mm
Height
2800 mm
Cart base
1900 mm
Base
11500 mm
Full capacity
205
Nominal capacity
143
Height and width of doors designed for wheelchair accessibility
1400x900 mm
Number of seats
1
Passenger area lighting
LED
Heating of the driver's cab
Air from heater
Wheelchair seating device
ramp
Specialised wheelchair area, MM
800x1350
Cabin heating
electric heaters
Maximum capacity
205
Body length
21900 mm
Body width
2500 mm
Car body height, not more than
2800 mm
Weight of empty car, not more
26 t
Number of double doors
4 pcs
Width of doorways
1300 mm
Rated contact line voltage
550 V
Rated voltage of the on-board low-voltage network
24 V
Rated power of traction motors (8 pcs.)
30 kW
Maximum total power of traction motors
376 kW
Maximum speed
75
Acceleration time to 40 km/h
B1/B8 2100/900 MHz
Floor height from rail head level
370 mm
Resource until the first overhaul
500000
Wagon service life by limit state of body and bogie frame, not less than
20 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
