LTE Cat.6 Outdoor Router with Modem for Surveillance, Kroks Rt-Ubx PoE DS e6 4-48

Available for Import

LTE Cat.6 Outdoor Router for Reliable Surveillance in Remote Areas

Communication Devices

Manufacturer: KROKS PLUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

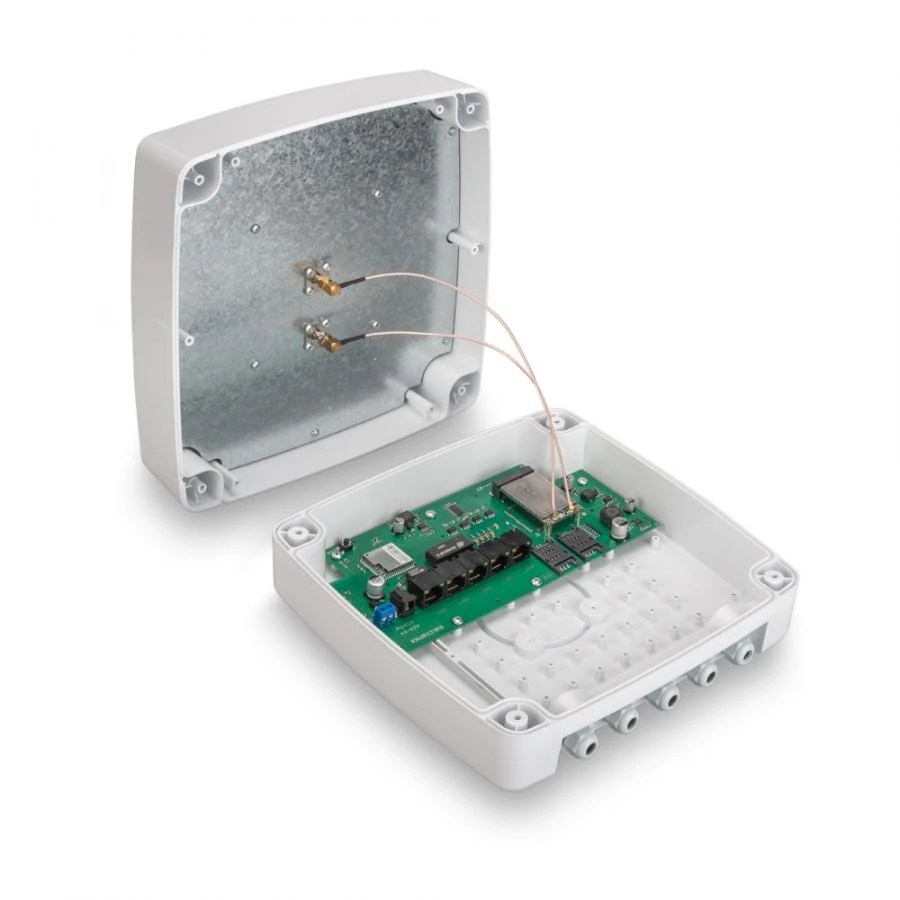

This router is designed specifically for video surveillance in areas of uncertain reception of mobile signal, where wired connection to the Internet is not available. For example, construction sites, transport stops, intersections, etc. The set is a MIMO antenna with a gain of 15 dB, made in a sealed all-weather housing.

In the antenna there is a router with 5 Ethernet 100Base-Tx ports (4 ports with PoE48, 1 port - WAN with PoE IN). Thus the set allows you to connect up to 4 IP-cameras with power supply via RJ-45 LAN cable (PoE48V) and the ability to automatically overload any of the cameras in case of its hang-up. The router has a built-in 4G modem LTE sat.6 allowing you to get a maximum speed of incoming traffic 300 mbps and outgoing 50 mbps.

The modem supports two SIM-cards mini-SIM format and allows you to set up a backup internet channel from different operators in the case when the wired internet is unstable or absent..

Specifications

Equipment

Directional antenna KAA15-1700/2700 U-BOX in hermetic case

MIMO support

MIMO 2x2

Operating frequencies

2G - GSM - B3 - 1800 MHz

Modem baud rate

4G - up to 300 Mbps (receive) / 50 Mbps (transmit) 3G - up to 42 Mbps (receive) / 5.76 Mbps (transmit)

Ports and interfaces

Ethernet ports - 5 pcs., 100 Mbps (4 pcs. LAN, 1 pcs. WAN)

Memory

Ram 64 MB Rom 16 MB

WiFi transmitter power

20 dBm

Wi-Fi standard

802.11b/g/n

Processor frequency (CPU)

580 Mhz

Power Type

Passive PoE 24 V

LAN port speed

10/100

Number of LAN ports

4 pcs

Number of SIM cards

2 pcs

Number of modems

1 pcs

LTE Category

LTE cat.6

Interfaces

LAN, WAN, WiFi 2.4 GHz

Standard

GSM, GPRS, EDGE, 3G, HSDPA, HSUPA+, 4G, LTE

Antenna connector

U.fl

Length

295

Width

250

Height

115

Weight

2300

Mark

Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
