LTE Cat.6 Router with SIM Injector - Enhanced Signal Support

LTE Cat.6 Router with SIM Injector Support - Kroks Rt-Pot RSIM DS eQ-EP for Signal Enhancement

Manufacturer: KROKS PLUS LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

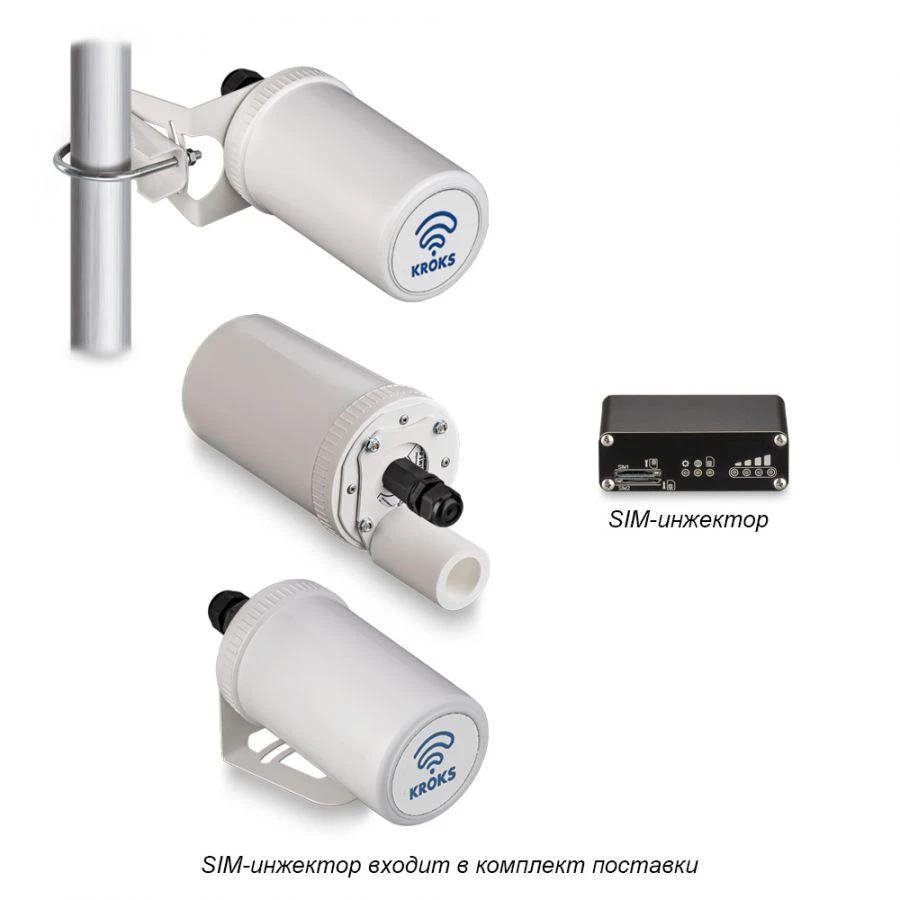

This illuminator when used with a satellite dish provides signal amplification up to 30 dB. It can also work as an independent antenna and give 8-9 dB. The operating frequency range is 1700-2700 MHz.

The transmitter supports MIMO technology and works in 3G/4G standards. The sealed housing reliably protects from unfavourable weather conditions. The transmitter is equipped with a m-PCI-modem Quectel LTE cat.6, which supports 3G/4G standards and operates in the frequency range of 1700-2700 MHz.

The modem's reception speed is limited by the LAN port bandwidth and is 100 Mbps. The modem itself meets the requirements of LTE-Advanced technology and according to its technical characteristics is capable of providing reception up to 300 Mbit/s. The kit includes a SIM-injector for two SIM-cards.

This makes it possible to perform a quick and convenient installation of sim cards. Two more slots for SIM-cards are located inside the body of the illuminator on the router board. A total of 4 sim cards can be installed.

Specifications

Equipment
Router KROKS Rt-Pot RSIM DS eQ-EP
MIMO support
MIMO 2x2
Operating frequencies
3G - WCDMA - B1/B3 - 2100/1800 MHz
Modem baud rate
4G - up to 300 Mbit/s (receive) / up to 50 Mbit/s (transmit)
Ports and interfaces
Ethernet ports - 1 pc, 100 Mbps
Memory
Ram 64 MB Rom 16 MB
WiFi transmitter power
no
Wi-Fi standard
no
Processor frequency (CPU)
580 Mhz
Power Type
Passive PoE 24 V
LAN port speed
10/100
Number of LAN ports
1 pcs
Number of SIM cards
2 pcs
Number of modems
1 pcs
LTE Category
LTE cat.6
Interfaces
no
Standard
3G, HSDPA, HSPA+,DC-HSPA+, 4G, LTE-FDD, LTE-TDD
Antenna connector
TS9
Length
250
Width
110
Height
110
Weight
960
Mark
Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
