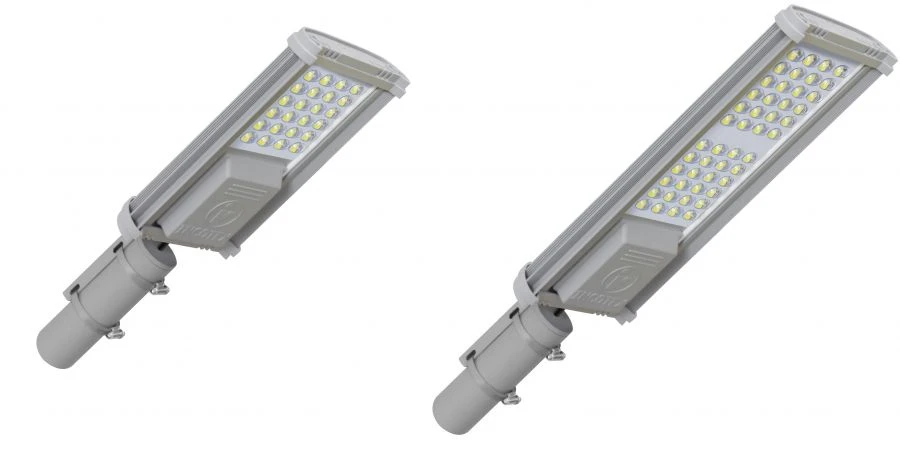

MAG10 Series Outdoor LED Street Lighting for Roads and Open Spaces

Elegant, lightweight luminaires MAG10 have a street (outdoor) version with the presence of lightning protection, designed to illuminate roads categories B and B, yard areas, open spaces, etc. Protection class against electric shock is II. The basis of the luminaires is LED clusters with an integrated driver on a common board.

The board is hermetically sealed with group lenses and driver compartment cover, mounted on a lightweight aluminium profile with low thermal resistance. Patented "floating" design of LED module mounting allows to compensate for the difference in thermal expansion coefficients of LED boards and group lenses. The absence of holes for fastening (with self-tapping screws), significantly improves resistance to climatic influences.

The luminaires are designed for installation on a cantilever with a diameter of 48 mm.
