Main Grounding Bus GZSH.05-430.290.7M8-M Available for Import

Main Grounding Bus GZSH.05-430.290.7M8-M for Electrical Installations

Electrical Circuit Devices
Manufacturer: ELMASHPOM LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Main earthing bar GZSh.05-430.320.8M8-M Main earthing bar GZSH.05-430.350.9M8-M Main earthing busbar GZSH.05-440.170.3M8-M Main grounding busbar GZSH.05-440.260.6M8-M Main earthing bar GZSh.05-440.230.5M8-M

Description

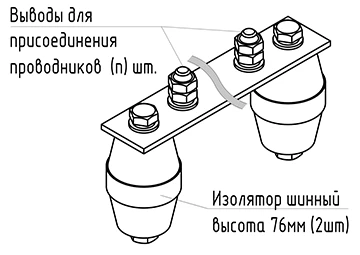

Main earthing busbar, copper 290 x 30 x 4 mm with 7 M8 leads on insulators 76 mm high. Busbar, which is part of the earthing device of the electrical installation up to 1 kV and is designed to connect several conductors for the purpose of earthing and equipotential bonding

Specifications

Size
110-30-260 mm
Weight
0.976 kg
Material
Tire material - copper
Material
insulator material - polymer
Type
main ground busbar
