Manual Winch RL-500/1000-15 Execution 13 for Efficient Lifting and Loading

Diverse Winches

Manufacturer: AVITEK OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Manual winch RL-500/1000-15 version 17 Manual winch RL-500/1000-15 version 1 Manual winch RL-500/1000-15 version 19 Manual winch RL-500/1000-15 version 2 Manual winch RL-500/1000-15 version 10

Description

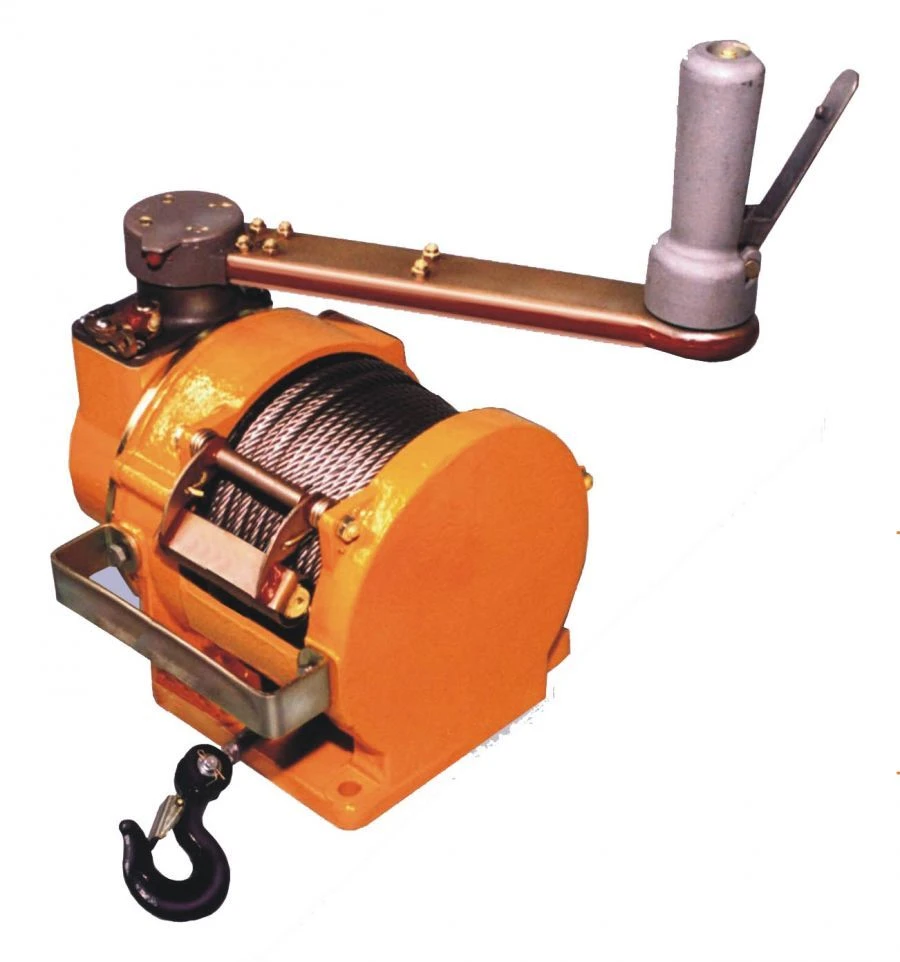

Manual winch RL-500/1000-15 version 13 is designed for loading and unloading work in construction and agriculture, installation work in the individual garage, as well as for moving loads. The winch consists of an aluminium housing with places for fixing the winch to the supporting surface, a drum with a rope, a gearbox, a swivel head, a ratchet mechanism and a manual drive handle with a stopper to control the winch drive. The gearbox consists of one pair of bevel gears and two pairs of spur gears. The swivel head can be mounted in various positions for convenient use of the hand drive handle. The rotary motion of the handle on the shank of the winch is transmitted through the gearbox to the drum for releasing or retracting the rope. For carrying the winch on the body there is a transport handle.

Specifications

Type

manual

Name

winch

Designation

RL-500/1000-15 version 13

Rope length

30 m

Number of block rolls

2 pcs

Maximum force on the handles of the manual drive when lifting/lowering the load, not more than

176.52

Operating temperature range

-60 to +40 °C

Overall dimensions

226 x 230 x 220 mm

Weight

15...22 kg

Rope termination

lash

Rope diameter

5 mm

Load capacity, not more

500 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
