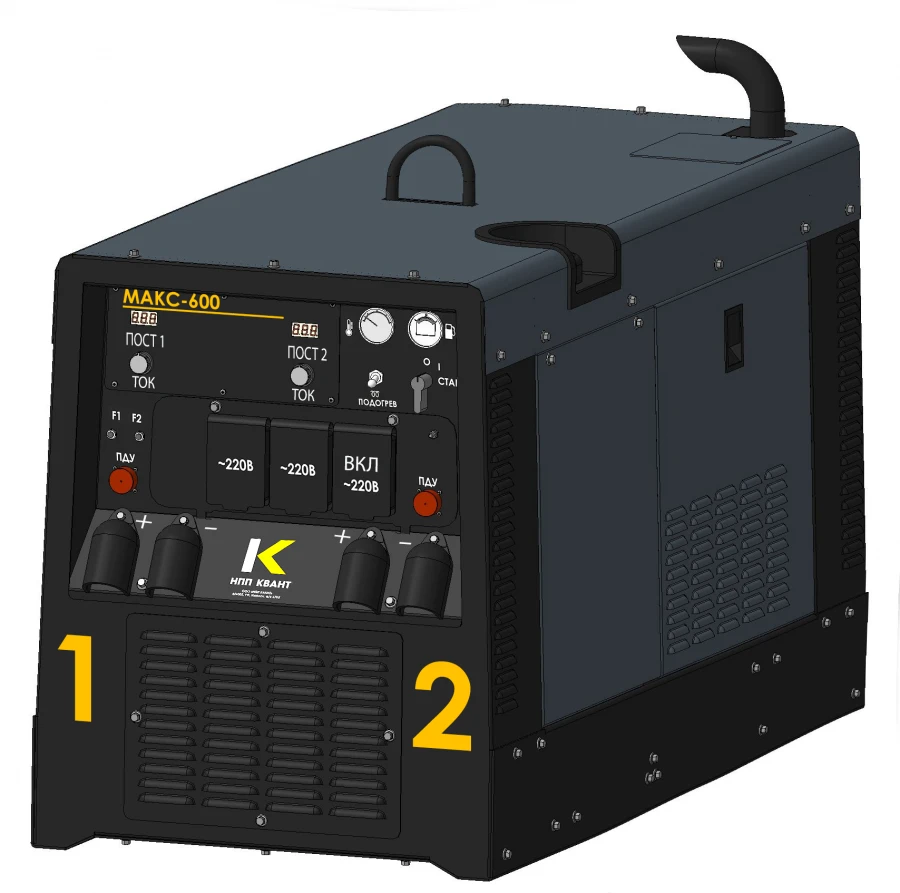

MAX-600 Welding Machine - Efficient Dual-Station Arc Welder

MAX-600 Welding Machine - Perfect for Manual and Semi-Automatic Welding Applications

Manufacturer:Kvant LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Designed for use as an autonomous two-post welding complex for manual and semi-automatic arc welding, cutting and cladding of metal with direct current with adjustment range of each post 30-300 A. It is produced in climatic version "U" of placement category "1" according to GOST 15150 and is designed for outdoor operation in field conditions. Provides nominal parameters when working at an altitude not more than 1000 m above sea level at ambient air temperature from minus 60 ° C to plus 40 ° C and relative humidity not more than 80% at 15 ° C. .

Specifications

Type of product according to PP RF 616
Arc welding equipment
Power
52.8 kW
Rated welding current
300 A
Operating voltage
32 V
Minimum welding current
30 A
Welding current adjustment range
30...300 A
Service life
5 year
EFFICIENCY
80 %
Insulation class
?
Protection class
IP23 S
Switching modes
Armoured glass
Magnetic current compensation mode
Armoured glass
Drive motor
Armoured glass
Converter (2 posts)
Armoured glass
Additional 220V power supply
Armoured glass
220V auxiliary source voltage
230 V
Power of auxiliary 220V source
5 kW
Weight
680 kg
Dimensions
1650x920x910 mm
Mark
MAX-600
Type
welding unit
Equipment
MAKS-600, technical description, passport for MAKS-600; engine manual; passports and manuals for MAKS-600; set of remote control (2-button for welding, 1-button for KMP); set of engine consumables for 4 thousand reels (fuel, oil, air filters),oil, air filt
Load Duration (LL)
100 %
Type of welding voltage regulation
smooth
Contact welding
no
Manual arc welding
Armoured glass
argon-arc welding
Armoured glass
Semi-automatic welding
Armoured glass
Automatic welding
Armoured glass
Type of welding current
permanent
Maximum welding current
300 A
No-load voltage
Flat grinder, Specialised grinder V
Height
910 mm
Width
920 mm
Length
1650 mm
Operating modes (continuous/pulse)
continuous
Maximum power consumption, kW
52.8

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, RussiaCIF Available to major ports worldwideEXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C)Wire Transfer (T/T)Escrow Services
