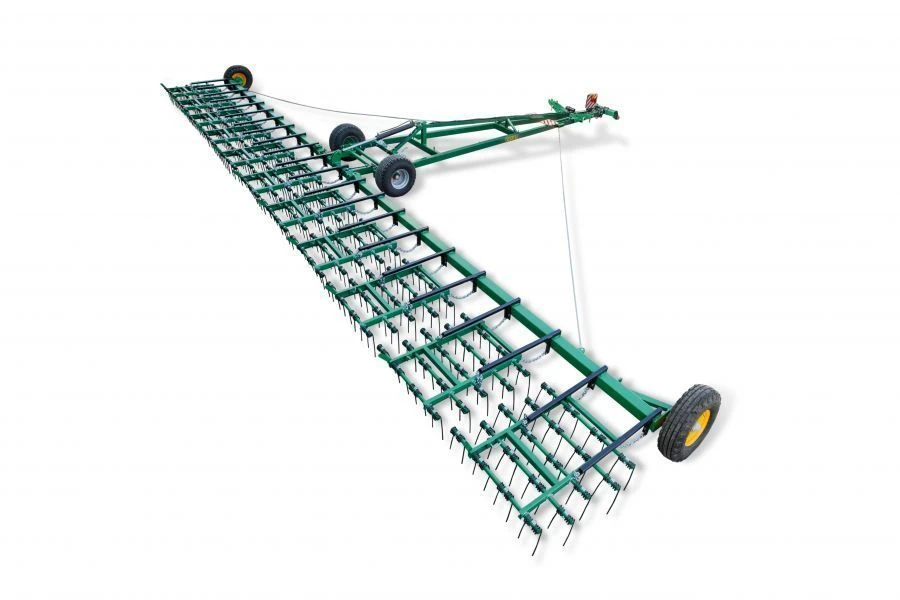

Medium Spring Harrow VELES BS-17 for Effective Soil Preparation
Manufacturer:
AZSM OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The working width is 16,7 m, the number of sections - 11 pcs., coupled with a tractor of traction class 1,4 tonnes. It is designed for closing moisture before sowing grain and industrial crops, pre-emergence and post-emergence harrowing, incorporation of mineral fertilisers, destruction of weeds in the phase of "white thread", care for fallow, field levelling, uniform distribution of crop residues on the field.
Specifications
Type of product according to PP RF 616
Tooth harrows
Working width
17 m
Harrow type
Zubovaya
Material of working elements
Steel
Material of frame structures
Steel
Capacity, ha/h
17
Height
2 mm
Width
6 mm
Length
4 mm
Performance
17
Number of working orans
7 pcs
Type of aggregation
cat. ii/iii; semi-mounted
Required number of hydraulic terminal pairs
1 pcs
Depth of treatment
6 cm
Operating speed
18
Transport speed
40
Spring tooth diameter
10 mm
Spring tooth length
415 mm
Tooth pitch
38 mm
Angle of attack of teeth, deg
0 -75
Tires
2?9.00-16; 2?400/60-15.5
Length in transport position
9.12 m
Width in transport position
2.68 m
Height in transport position
2.91 m
Weight
2920 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
