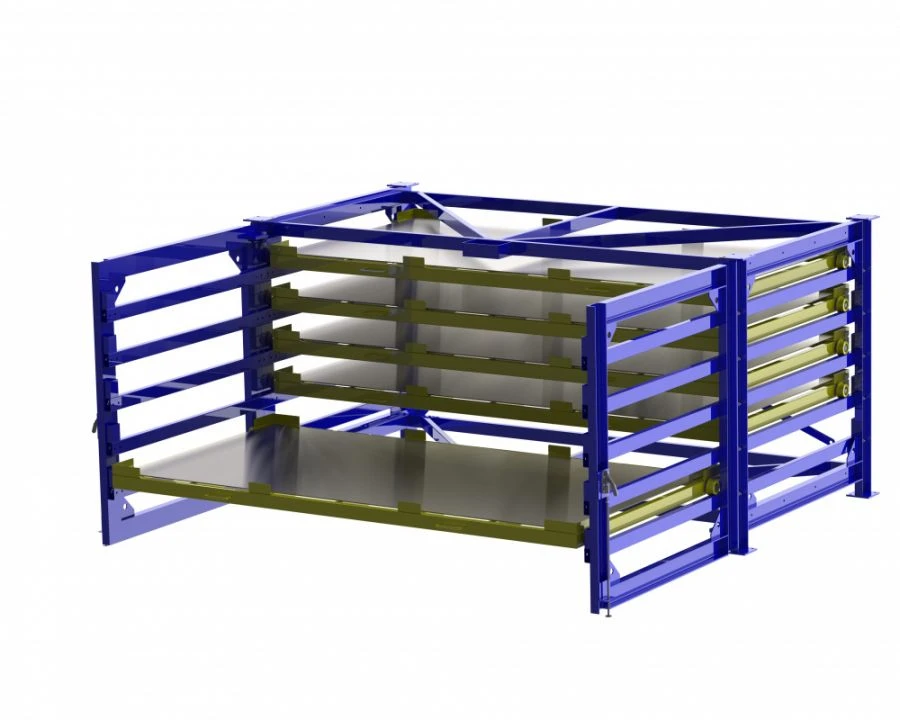

Metal Sheet Storage Rack for Horizontal Storage 3000x1500 mm

The rack is designed specifically for horizontal storage of sheet metal up to 3000x1500mm in size.

The design allows easy access to the sheets for further processing.

Horizontal sheet metal storage is the most efficient way to utilise production and storage space.

The size of the pull-out pallet allows sheet metal materials of different thicknesses and compositions to be stored on each shelf. The DVK rack ensures the safety of the production process, allows for quick inventory and easy access to view available items.

Tfeatures:

• Stored sheet size: 3000 x 1500 mm

• External dimensions of the rack: (HxWxH) 1700x3424 x1811 (3280) mm

• Pallet type: pull-out, 100 per cent extendable

• External dimensions of the pallet: 3180 x 1600 mm

• Top and front loading

• Horizontal storage on metal pull-out pallets

• 5 pallets per rack

• Pallet load capacity 2000kg

• Rack load capacity 10000kg

• At your request we can increase the number of tiers, change the load characteristics and change the size of the rack!
