Microprocessor Control System for Railway Signals and Switches MPC-I ERKF.424359.002

Available for Import

Microprocessor Control System for Railway Signals and Switches MPC-I for Railway Operations

Railway & Traffic Control Equipment

Manufacturer:PromElectronica OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Microprocessor centralisation of switches and signals MSC-I is intended for control of floor objects - switches, traffic lights, crossings, etc. - at railway stations in order to organise train traffic by means of modern microprocessor technology.

Specifications

Equipment

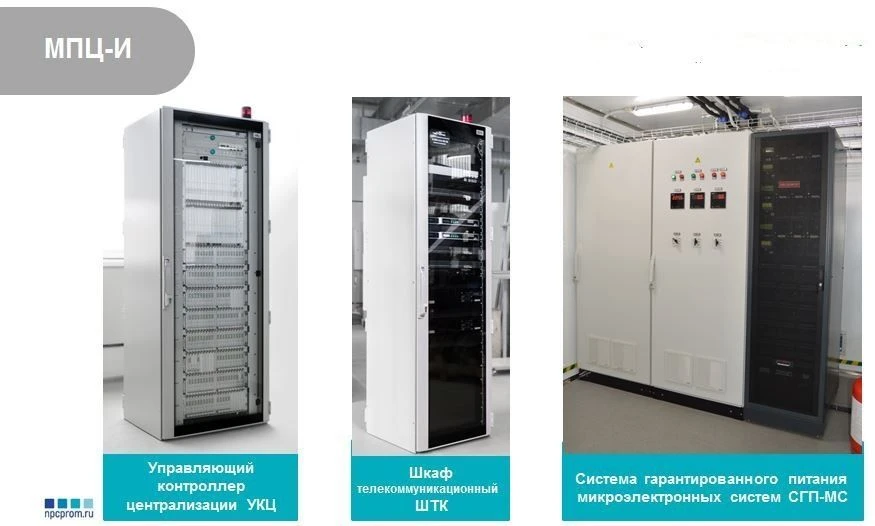

UKTS, SHK, ARM DSP, ARM SHN, SGP-MS

Designation

????.424359.002

Logic programme construction

Unified programme units

Availability of direct wire mode

Backup control mode, optional

Number of input/output channels per one UCC

544 pcs

Number of cascadable UCCs

4 pcs

Number of arrows per UCC (one or first UCC)

up to 45

Overall dimensions of UCC, mm, not more

800 × 2000 × 600 mm

Weight of UCC, kg, not more

300 kg

Overall dimensions SHTK, mm, not more

600 × 2000 × 600 mm

Weight of trowels, kg, not more

200 kg

Overall dimensions of DSP ARM, mm, not more

1800 × 725-750 × 1000 mm

Overall dimensions of ARM SH, mm, not more

1200 × 725-750 × 750 mm

Weight of the SN ARM, kg, not more

150 kg

Class of accommodation conditions under the influence of climatic factors according to (GOST 34012-2016)

Placement category (GOST 15150-69)

UHL4

Ambient temperature, °C

plus 1 to plus 40

Relative humidity at temperature plus 25 °C

Not more than 80 per cent

Class of placement conditions under mechanical loads (GOST 34012-2016)

MS1

Protection class against access to hazardous parts and harmful effects caused by penetration of solid objects into the enclosure

IP30

Power supply unit

system for guaranteed power supply

Power supply voltage, V

24 ± 10 %

Maximum power consumption of UCC, W, no more

650 - Peak value W

Maximum power consumption of the SHTK, W, not exceeding

900 - Peak value. W

Maximum power consumption of the DSP APM , W, max.

960 W

Maximum power consumption of ARM SN, W, not more than

480 W

Type of safety system

24 ± 10 %

Type of control system

????????????????

Control programme execution cycle time, ms, not more

100

Time of reaction to external influences, s, not more

Method of interrogation of objects of control

cyclic

Method of forming control actions

cyclic

Method of input of control commands

?????????????

Number of relays per switch (for shunting areas)

From 6 to 8

Number of relays per switch (for stations with train operation)

14 to 15

Communication channel capacity at remote control of stations, Mbit/s, not less than

Type of LAN formed between stations when remote control is used

peer-to-peer

Type of redundant communication channels between remote stations

Automatic

Number of connection points for connecting communication equipment of the SHTK when organising LAN for remote control of station

2 - physical

Time of provision of information on change of control objects at the control panel (remote control of stations) to the operating

Time of transmission of TOU commands from the PU to the control centre (remote control of stations), s, not exceeding

Transportation conditions in terms of mechanical loads (GOST 23216-78)

Group L

Transportation conditions in terms of exposure to climatic factors (GOST 15150-69)

Group 5 (OZh4)

Storage conditions in terms of exposure to climatic factors (GOST 15150-69)

group 1 (L)

Average MTBF, h

40000

Warranty period of operation, one year, not less

3 year

Service life, year, not less

20 year
