MKO-K6/A Terminal Cable Joint for Suspension Cables Available for Import

MKO-K6/A Terminal Cable Joint for Efficient Suspension Cable Installation

Cable Accessories
Manufacturer: SSD OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

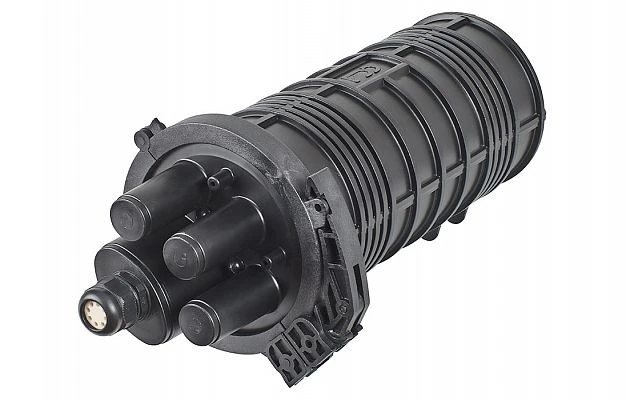

The MKO-K6/A dead-end coupling is designed for installation of overhead trunk cable with subscriber branches of self-supporting drop cables of small diameter. The peculiarity of all MKO couplings with the letter "A" is the presence of a bar inside for installation of adapters. It allows to use terminated subscriber drop cables and to carry out cross-switching. The coupling has an oval entry for the transit loop of optical modules without cutting. The loop of modules is laid out on the tray on the opposite side of the cassettes.

Specifications

Type or grade of material
Armlen
Equipment
Enclosure (headband, casing, clamp, bracket), Cassette KM-2445 with cover, KDZS 4525 sleeves, Tweezers for laying KDZS, Panel 8 FC, Fitting 8x(2-3), Set of markers and ties, Silica gel (packet).
Designation
MKO-K
Type
Dead end
Profile
Cylindrical
Max. number of plug-in connections
8 pcs
Type of adapters
FC
Max. number of welded joints
48 pcs
Enclosure sealing
Clamp
Sealing of inlets
special leads
Length
378 mm
Diameter
189 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
