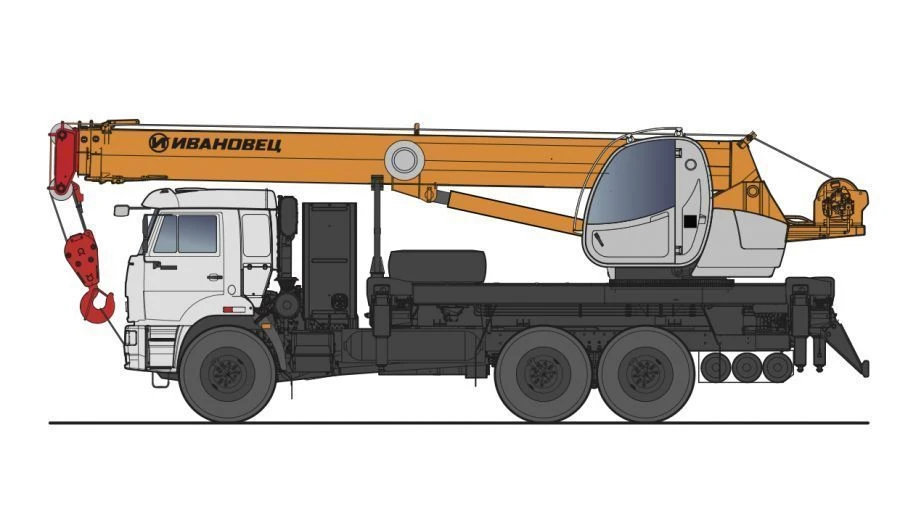

Mobile Crane KS-45717K-3-55 with U7810.5 Cabin

Available for Import

Mobile Crane KS-45717K-3-55 for Construction and Loading Applications

Mobile Truck Cranes

Manufacturer: IMZ AUTOCRANE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

A truck crane KS-45717K-3-55 is designed for construction and installation and loading and unloading work with ordinary and dangerous goods at dispersed sites. The base chassis is KAMAZ-43118 of environmental class 5, which uses compressed natural gas (compressed methane) as fuel. The system of cylinders placed on the crane allows filling 1120 litres of gas fuel.

This allows the crane to travel a distance of more than 500 kilometres or 24 hours of continuous operation. The maximum lifting capacity is 25 tonnes The crane is equipped with a reliable winch with 1Ts2U spur gearbox. The boom is an ovoid, telescopic three-section boom with a length of 21 metres.

In order to increase the length of the boom and podstrelovogo space as part of the crane used gooseneck length of 9.0 m, installed when working parallel to the main boom or at an angle of 30 degrees.

Specifications

Type of product according to PP RF 616

Truck cranes

Boom length

21 m

Availability of air conditioning system

Optional

Availability of heater

Armoured glass

Climatic version

Telescopic boom

Armoured glass

Gooseneck length

9 m

Rated motor power (her)

300 hp

Rated load capacity

25 t

Wheel arrangement

6?6

Engine type

Gas

Type of undercarriage

Wheeled

Base machine type

Motor vehicle

Crane mechanism drive

Hydraulic

Base chassis

KAMAZ-43118

Availability of FOPS operator protection device

ROPS operator protection device

Arrow

Telescopic

Maximum payload

25 t

Arrow

9...21 m

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
