Mobile Inspection System "Avtodosmotr" CRPA.421423.027-01

Available for Import

Mobile Inspection System "Avtodosmotr" for Vehicle Underbody Inspection

Security System Modules

Manufacturer: ALGONT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

d for control of open and viewed from the lower projection parts of the body and chassis of the vehicle, detection of foreign objects (bookmarks, objects prohibited for carriage) with simultaneous fixation of the state number plate, transfer, storage and processing of the received data (images) and information on the inspection of vehicles, as well as for the control of two barriers (automatic gates, ramming devices or other barrier devices).

Specifications

Operating system

Astra Linux Common Edition

Design variant

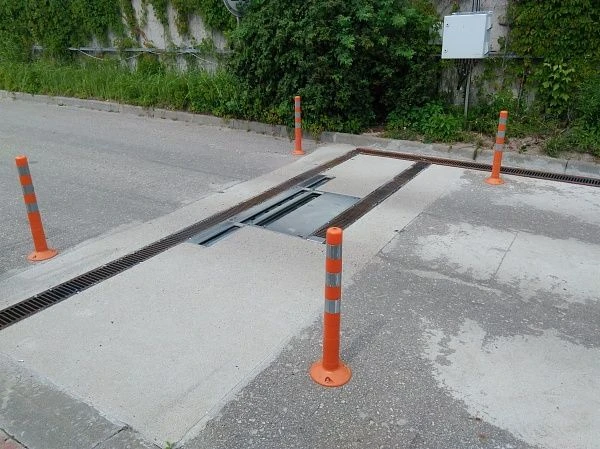

Stationary (installation of inspection unit in a pit)

Continuous operation time of AMF

Round the clock

AMF availability time after power supply is switched on

No more than 5

Width of the control area for recognizing the license plate number of the vehicle

at least 3 m

Maximum speed of ATC movement

Time of outputting the result of scanning the bottom of the vehicle in automatic mode

Not more than 7 s for passenger cars; for other wheeled vehicles, depending on length

Parameters of inspected vehicles

ground clearance - from 0.1 to 1.0 m; maximum overall length - up to 22 m; track width - from 1.1 to 2.6 m m

Power consumed by AMF

No more than 2 kW

AMF power supply

From single-phase AC mains with voltage (220 ± 22) V, frequency (50 ± 1) Hz

Operating temperature (ARM-O)

5...40 °C

Operating temperature (AMF products installed outdoors)

-40...50 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
