Available for Import

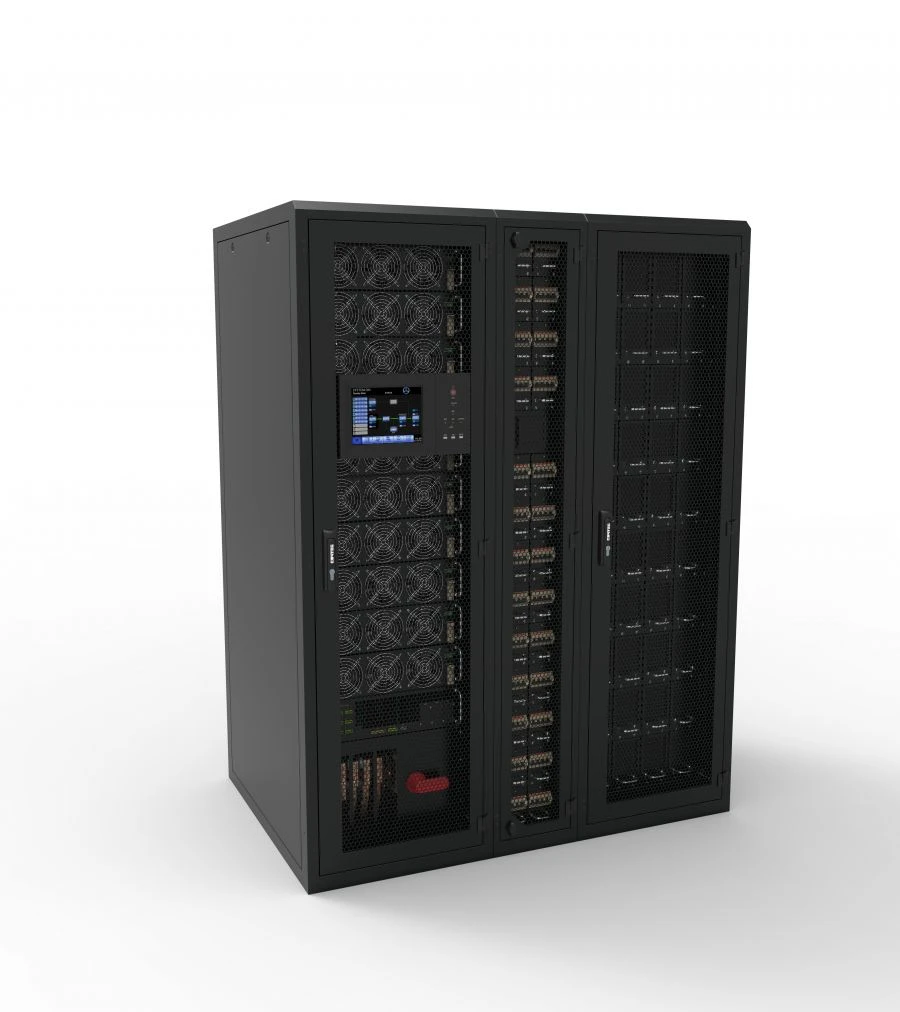

Modular Uninterruptible Power Supply Mirotek MIR3.MX 240kVA for Equipment Protection
Manufacturer:
MIROTEK SYSTEMS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Three-phase modular Uninterruptible Power Supply. Maximum power 240kVA, four slots for installation of 50kVA or 60kVA power modules. UPS is designed to protect the connected equipment of data centres from power loss / surges / power failures. It is used in data centres, telecommunications, industry.
Specifications
Rated output voltage
415 V
Nominal input frequency
60
Rated output frequency
60
Maximum permissible nominal voltage of rechargeable batteries
600 V
Full power
50000...240000
Type
Double conversion UPS
Communication interface
RS232, RS485, SNMP, CAN
Minimum battery life at design load
5
Possibility to connect external batteries
Armoured glass
Uninterruptible power supply form factor
Freestanding
Type of batteries used
lead-acid, nickel-cadmium, lithium-ion
Display availability
LCD touch screen
Presence of terminal output
Armoured glass
Earthquake-proof design
Optional
Rated power
50000...216000 W
Active power
50000...216000 W
Uninterruptible power supply efficiency
97 %
Minimum permissible nominal voltage of batteries
360 V
Reducing input voltage without switching to battery use
305 V
Increasing the input voltage without switching to battery use
485 V
Permissible operating time at overload 110%
60
Permissible operating time at overload 125%
10
Permissible operating time at overload 150 %
1
Current input nonlinear distortion factor (THDi)
3 %
Output voltage nonlinear distortion coefficient (THDv)
1 %
Input power factor
0.99
Output power factor
0.9...1
Maximum ambient temperature
40 °C
Maximum ambient relative humidity
95 %
Noise level
56
Protection class
IP20
Height
1000...2500 mm
Width
540...6000 mm
Depth
800...1400 mm
Weight
200...438 kg
Estimated load power relative to nominal load power in kW for selecting the autonomous operation time
100 %
Number of battery rooms
1...10 pcs
Height of one battery cabinet
1000...2500 mm
Width of one battery cabinet
500...1500 mm
Depth of one battery cabinet
500...1500 mm
Lower limit of input voltage range (phase-to-neutral) without switching to battery operation mode
138 V
Upper limit of input voltage range (phase-to-neutral) without switching to battery operation mode
485 V
Charger power at rated load power relative to the rating of the uninterruptible power supply, not less than
16 %
Availability of a network card as part of the uninterruptible power supply unit
Armoured glass
Space for uninterruptible power supply maintenance
front 800mm, rear 0 to 500mm
Integrated N+1 redundancy (module level) for modular uninterruptible power supplies
Armoured glass
Availability of advanced monitoring when using modular batteries
Optional
Supports plug-n-play technology when using modular batteries
Armoured glass
Uninterruptible power supply phase (input:output)
3:3
Input connection
Depending on the configuration
Output connection
Depending on the configuration
Nominal input voltage
415 V
Battery arrangement
inside/outside the UPS
Type of battery cabinet design
built-in/detached
Modular uninterruptible power supply battery architecture
Armoured glass
Cold start function
Armoured glass
Redundancy in parallel operation
Armoured glass
Availability of high energy efficiency mode
Armoured glass
Charging batteries in high energy efficiency mode
Armoured glass
Interference correction in high power efficiency mode
Armoured glass
Zero (0ms) switching time from high energy efficiency mode
Armoured glass
Uninterruptible power supply load self-test mode with no load connected
Armoured glass
Power supply voltage
415 V
Parallel operation function
Armoured glass
Model architecture of uninterruptible power supply power section
Armoured glass
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
