Available for Import

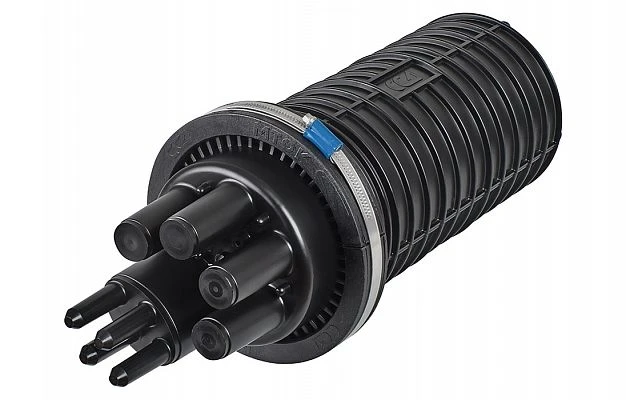

MTOK-V Transit Optical Cable Joint for Underground and Underwater Applications

Cable Accessories

Manufacturer: SSD OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

MTOK-V dead-end transit coupling is designed for installation of any underground optical cable laid in soils of all categories, as well as submarine OCs laid through rivers, lakes and swamps. This is achieved by using special cable glands, each of which in turn covers a certain group of cables. The coupling provides an oval gland for the transit loop of optical modules without cutting. The loop of modules is laid out on a tray on the opposite side of the cassettes.

Specifications

Type or grade of material

Armlen

Equipment

Body (headband, casing, clamp, bracket),Cassette KT-3645, KDZS 4525 sleeves, Tweezers for laying KDZS, Set of markers and ties, Silica gel.

Designation

MTOC-B

Type

Tupikova transit

Profile

Cylindrical

Surface protection coating

Clamp

Diameter

216 mm

Weight

2 kg

Resistance to mechanical influences

Single impact not less than 10 Joules

Length

49.4 cm

Operating temperature

-60...70 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
