Multi-functional Bending and Straightening Machine MGPS-25 for Versatile Metal Processing
Manufacturer:
CTSS OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

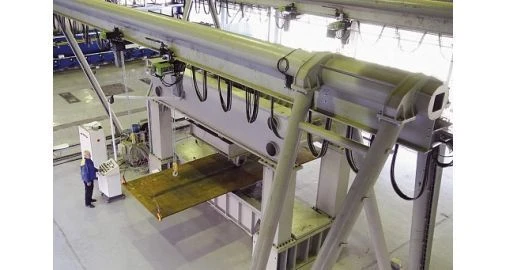

Multifunctional bending and straightening machine MGPS-25
Specifications
Type of product according to PP RF 616
Metal bending machines
Machine weight
12000 kg
Maximum bending angle, degree
170
Type of profile to be machined
Rolled sheets
Drive type
Hydraulic
Name
bending and straightening machine mgps-25
Type
Multifunctional
Height
4000 mm
Width
12000 mm
Length
25000 mm
Assignment
For sheet steel bending
Designation
MGPS-25
Voltage
400 V
Roller press weight
B1/B8 2100/900 MHz t
Highest bending force
250 (25) kN (tf)
Travel speed of the power unit (max)
6 m/min
Feeding / pressing speed of the upper bending roller
15/5 mm/s
Sheet rolling speed in rollers (max)
8 m/min
Thickness of bent plate (max)
single (double) sheet curvature: 20 (16) mm
Track gauge of crane tracks (gantry crane span)
10000 mm
Width of rolled metal (max)
2500 mm
Roller press capacity
11 kW
Length of crane tracks
16 (24) m
Gantry crane base
2500 mm
Vertical travel of the upper bending roller
350 mm
Gantry crane dimensions (lxbxh)
10.7x3.1x4 m
Dimensions of the roller press (lxbxh)
5x2.1x3.1 m
Gantry crane electric hoist load capacity
1 t
Length of rolled metal (max)
8000 mm
Number of gantry cranes
1 pcs
Number of hoists on the gantry crane
2 pcs
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
