Multi-stranded Thermoelectric Wire PTWEVT with Single-Conductor Conductive Strands

Available for Import

Multi-stranded Thermoelectric Wire PTWEVT for High-Performance Electrical Applications

Thermoelectrode Cables

Manufacturer: REЖКАБЕЛЬ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Thermoelectrode stranded wire with single conductive cores, heat-resistant PTVEVTng(A) grade Thermoelectrode stranded wire with single-wire conductive cores, PTVEV grade Thermoelectrode stranded wire with single-wire conductive conductors, PTVEVng(A)-LS grade Thermoelectrode stranded wire with single and multiwire conductive cores, PTVEVng(A) grade

Description

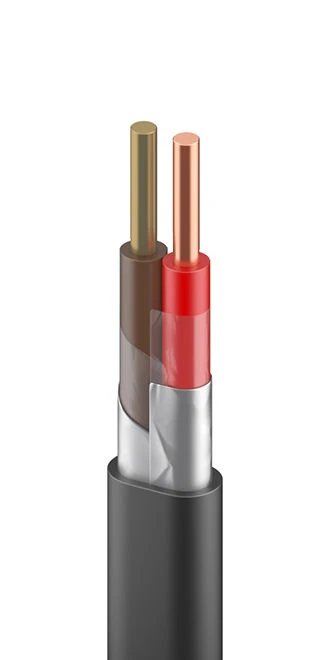

Thermoelectrode wire with conductive cores of copper and alloy or alloy pair with nominal cross-section from 0,05 to 2,5 mm2 with polyvinylchloride insulation, with screen from alumoflex, in sheath from polyvinylchloride plasticate, heat-resistant of reduced flammability. They are intended for fixed connection of thermoelectric transducers (thermocouples) to measuring instruments.

Specifications

Operating temperature range

-40...105 °C

Electrical insulation resistance, recalculated per 1 km of length under normal climatic conditions, not less, MOhm

5000

AC voltage test with nominal frequency of 50 Hz for 5 minutes between cores

1000 V

Rated AC voltage

380 V

Designation of copper and alloy or alloy pair

CA - Chromel-alumel

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
