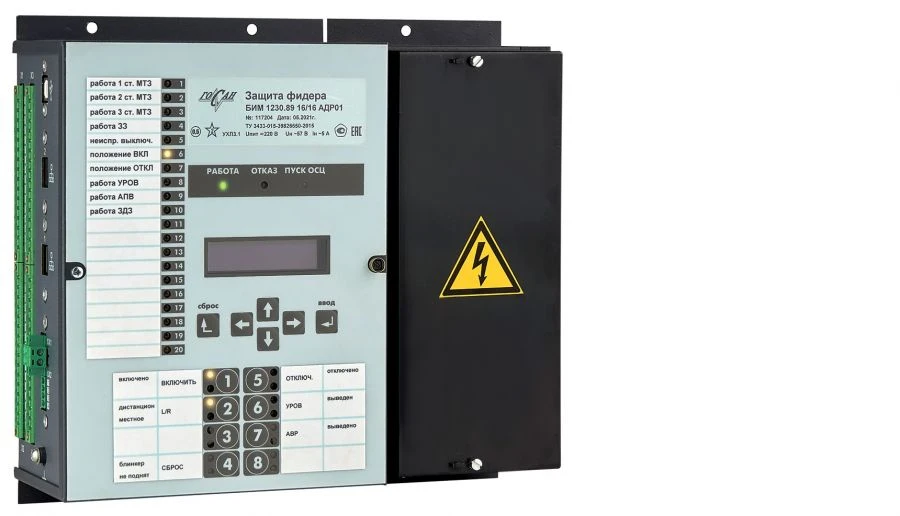

Multifunctional Connection Terminal BIM 1XXX for Electrical Applications

BIM 1XXX bay terminal is a multifunctional microprocessor-based device for interfacing with electrical objects. The set of functions of the BIM includes: -Relay protection and automation, control of switching equipment; -Meters of current values of DC and AC signals for three and single-phase electrical circuits. For AC signals are measured: current values, symmetrical components of the main harmonic, relative phase angles of the main harmonic, power (active, reactive, total), both 3-phase and phase-by-phase, frequency of the main harmonic. -Digital oscilloscope with a set of triggers; -Event recorder, recording the moments of change of states and the current state of discrete inputs and outputs of the device. If necessary, pulse counters are organised on the inputs; -Counters of electric energy of alternating and direct current; -Quality control of electrical energy.
