MVK-IP 5520 A Rotating Surveillance Camera for Round-the-Clock Monitoring

Digital Video Cameras

Manufacturer: BYTEERG LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

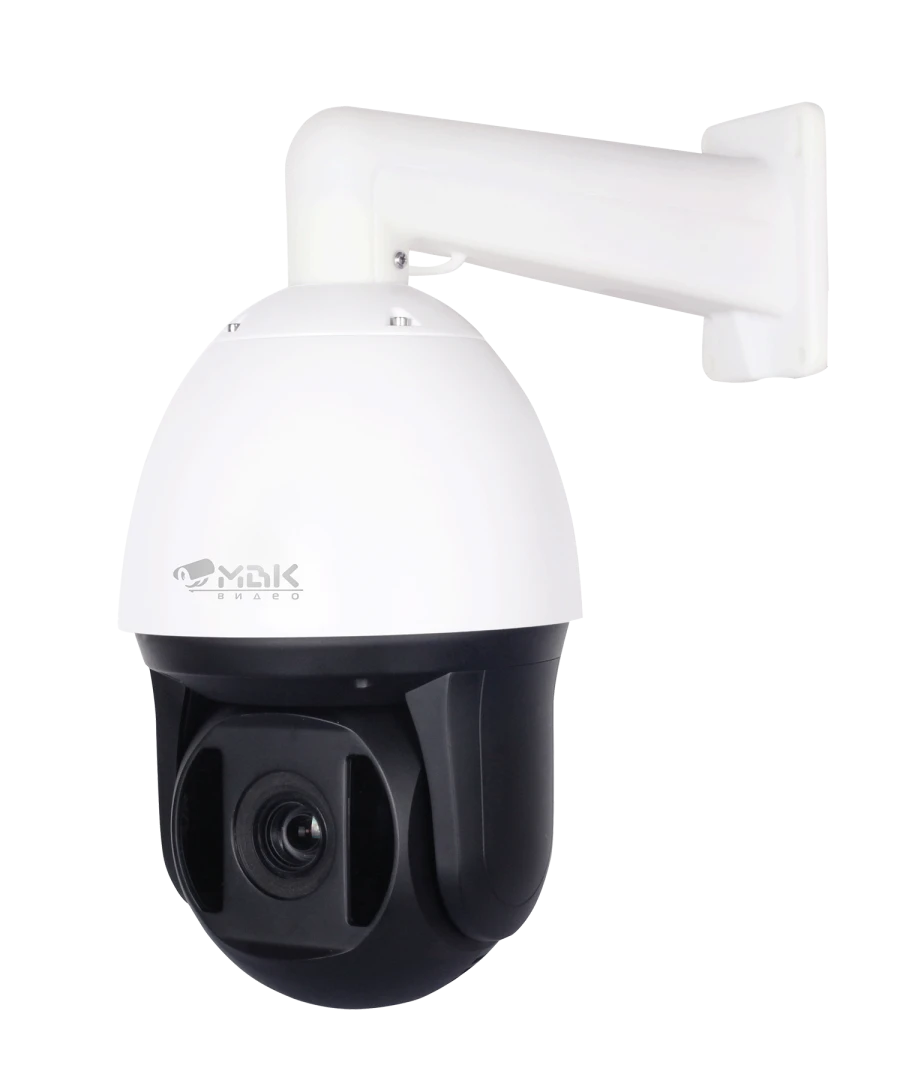

Swivelling Video Camera MVK-IP 5520 A BRUA.463349.039 is designed for visual observation of the selected area and control at different times of the day. The video camera has built-in infrared emitters. IR emitters are switched on automatically when the illumination decreases, switching to black-and-white image mode.

The camcorder has a built-in microphone. The camera can be installed on horizontal, vertical or inclined surfaces.

Specifications

Reset button

Supported (physical button)

Noise reduction technology

2DNR and 3DNR

Additional features

Saturation/brightness/contrast/sharpness, Mirror, White Balance, Flicker Reduction, HLC, BLC, WDR, ROI, Anti-fogging

Non-volatile clock

24 Hours, not less

DC power supply

B1/B8 2100/900 MHz V

Memory card type

MicroSD\SDHC\SDXC

Memory card class

Class 2, class 4, class 6, class 10

Memory card capacity

512 GB, max.

Number of memory card slots

1 pcs

Connectors

RJ-45 (8P8C) jack, DC 12V

Codecs/Compression Standards

G.711U, G.771A, AAC

Data transfer rate

100 Mbit/Sec.

Video source standard, color or black and white camera

Ethernet (color video camera)

Number of frames per second (adjustable)

30 fps.

Recorded image format

H.265/H.265+/H.264(HP, MP, BP)/H.264+

Lens viewing angle in degrees of direct angle

50 to 3

Matrix (type, number of MPs, size in mm)

1/2.8 CMOS, progressive scan, 5 Mp, 4.6 mm to 165 mm, F 1.66 to F 3.03

Number of video channels

1 pcs

Number of audio channels

1 pcs

Audio source

Inbuilt speaker

Operating temperature (in degrees Celsius)

minus 40 to plus 60

Product weight (weight)

4500 grams, not more than

Overall dimensions (length, width, height)

350x350x200 mm, not more than

Audio receiver

Built-in microphone

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
