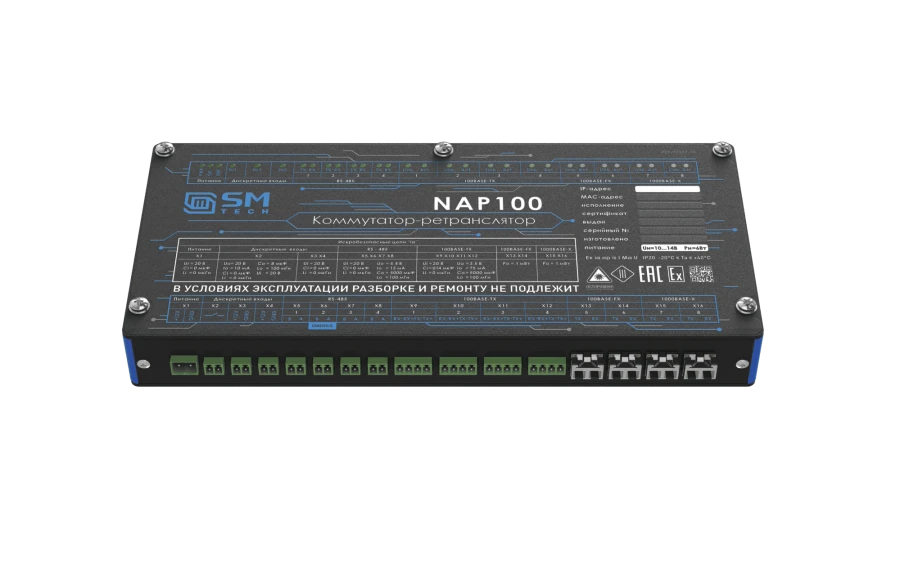

NAP100.D L2 Network Switch - Enhance Your Ethernet Network

Switching Communication Systems

Manufacturer: SPBEX-MINING LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

NAP100.D - network switch of L2 level, serves for switching of separate network segments of field buses with equipment of data transmission networks on the basis of Ethernet technology to create a single redundant, diagnosed network of the object. NAP is intended for use as equipment functioning in underground workings of mines, mines and their surface structures, including dangerous by gas and (or) dust according to the explosion protection marking and operating conditions.

Specifications

Mounting

DIN rail

Opportunities

NTP, LLDP, MAC-table, RTC clock, client tftp/scp, traffic filter, port mirroring, event logging, access control.

Reservation protocols

IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP

RS485 interface operation modes

Modbus TCP/UDP, gate TCP/UDP, client/server gate UDP, RS terminal

Access protocols

SSH v1/v2, Telnet, SMbus, SNMP v2c/v3, Console (CLI)

Capacity management

Supports inbound packet filtering and outbound packet restriction. Outbound packet restriction supports all packet types. Combinations of inbound packet filter settings: Broadcast/Multicast/Flooded Uni-cast packets, Broadcast/Multicast packets.

MAC address

8K MAC address table

Safety

SSH, SSL

Switch type

Managed

VLAN

IEEE 802.1Q port-based VLAN tag-based VLAN (256 entries)/ VLAN ID (up to 4K, VLAN ID can be assigned from 1 to 4096)

Switch connectors:

Power connector: 1pc; RS-485: 4pc; Discrete input: 3pc; 1000Base-X: 2pc; 100Base-FX: 2pc; 100Base-TX: 4pc.

Transmission speed

14,880 packets/sec - Ethernet port; 148,800 packets/sec for Fast Ethernet port; 1,488,000 packets/sec for Gigabit Ethernet port

Interface Standards:

IEEE802.3z 1000Base-X; IEEE802.3u 100Base-FX; IEEE802.3u 100Base-TX; IEEE802.1Q VLAN Tag

Network switch layer

L2 - channel level

Power consumption

6 W

Rated supply voltage

B1/B8 2100/900 MHz V

Protection class against electric shock

III

Degree of protection against external influences

IP20

Operating temperature

-20...40 °C

Explosion protection marking

Ex ia op is I Ma U

Depth

45 mm

Height

130 mm

Width

272 mm

Weight of the product without packaging, not more

2.5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
