Network IP Video Server for 32 IP Cameras - Domination IP-32P-16-HS Available for Import

Network IP Video Server for 32 IP Cameras - Domination IP-32P-16-HS for Surveillance Applications

Wearable Video Systems
Manufacturer: VIPAKS+ LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Domination IP-128P-16-HSR video server Domination IP-48P-16-HSR video server Domination IP-80P-16-HSR video server Domination IP-64PT-16-HSR video server Domination IP-96P-16-HSR video server

Description

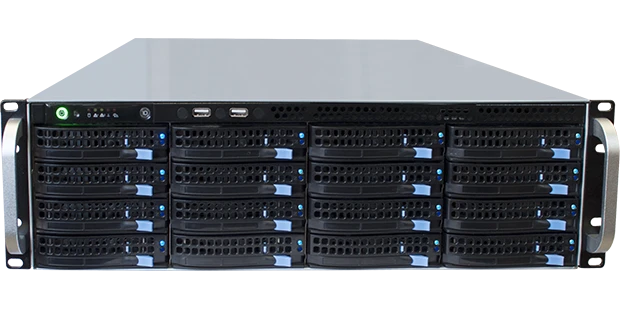

Network IP-video server is designed to connect 32 IP-cameras (with any resolution) of any manufacturer from the list of integrated. Supported video format H.265, H.264, MJPEG (via HTTP). Designed for recording video signal from video cameras and its storage.

The video server comes with software for remote configuration of the video server and for viewing cameras connected to it. The video server has baskets for installing up to 16 HDDs (any manufacturer) with the capacity of each up to 18TB. Incoming stream up to 1600 Mbit/sec.

4 network boards. Support for audio channels of IP-cameras. Support for rotating IP-cameras.

Domination Linux operating system protected from viruses and external influences is installed on the video server. Function of "hot swap" of hard discs.

Specifications

Number of licenses for connecting IP cameras
32 pcs
Number of audio channels
32 pcs
Operating system
Domination Linux
Motion detector
Support for built-in IP camera detectors
Maximum recording speed per channel
No restrictions
Recording modes
Continuous, by motion, by schedule, manually by operator, by contact closure/opening, by signal loss (recording duration without limitation), by video analytics events, event stream recording, audio recording.
Archive Mirroring
Armoured glass
Resolution per channel pixels
No restrictions
Supported HDD capacity
1...18
Maximum incoming flow Mbps
1600
Maximum outgoing flow Mbps
1600
Built-in network card
4 x LAN 10/100/1000 Mbps
Protocol/standard for connecting to IP cameras
HTTP, RTSP, ONVIF
Video output
VGA and/or HDMI (diagnostic only)
Power supply voltage
AC220 - 240V, 50Hz
Maximum power consumption
500
Temperature mode
5...40 °C
Country of origin
Russia
Size WxHxH (mm)
430 x 650 x 135
Number of HDD bays pcs.
16 pcs
HDD baskets with hot-swap function
Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
