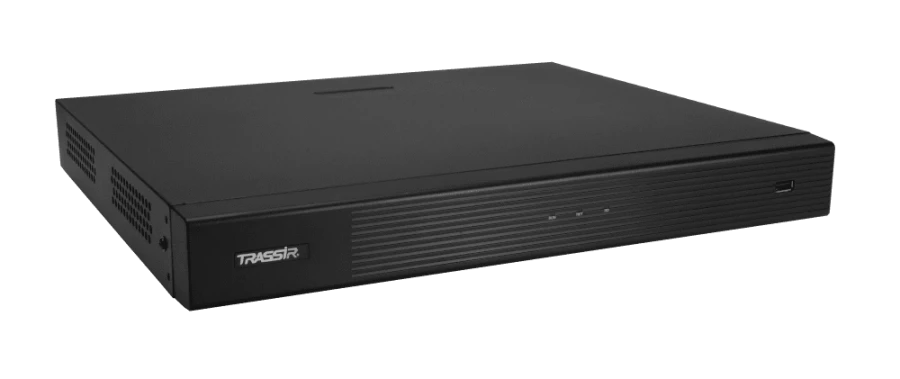

Network Video Recorder for IP Cameras - TRASSIR MiniNVR CT1 3216R AnyIP v2 for Surveillance Systems

Video Recorders

Manufacturer:TRASSIR LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

TRASSIR MiniNVR CT1 3232R AnyIP video recorder TRASSIR MiniNVR CT1 3209R AnyIP v2 video recorder TRASSIR MiniNVR CT1 3232R AF video recorder v2 TRASSIR MiniNVR CT1 3209R AnyIP Video Recorder Video recorder TRASSIR MiniNVR CT1 3204R AnyIP

TRASSIR MiniNVR CT1 3232R AF Video Recorder TRASSIR MiniNVR CT1 3232R AnyIP v2 video recorder TRASSIR MiniNVR CT1 3216R AF Video Recorder TRASSIR MiniNVR CT1 3216R AF video recorder v2 TRASSIR MiniNVR CT1 3216R AnyIP Video Recorder TRASSIR MiniNVR CT1 3204R AnyIP v2 video recorder

Description

Network video recorder for building video surveillance systems based on IP-cameras. Recording 16 channels, playback and display up to 16 channels.

Specifications

Neural network video analytics

SSL encryption support

Got it

Remote connection

TRASSIR Client, from Android / iOS mobile client, TRASSIR Cloud connection, up to 100 connections per server

Maximum power consumption, Watt

40 W

Supply voltage, V

B1/B8 2100/900 MHz V

HDD

Up to 2 18TB hard disks (not included)

Network protocols

TCP/IP, IPv4/v6, UDP, DHCP, CloudConnect, DNS, NTP, SADP, SMTP, iSCSI, UPnP, HTTP/HTTPS, RTSP, ONVIF, VNC

Network interface

2 Ethernet 10/100/1000 Mbps

Audio outputs

1 audio output (jack 3.5mm)

Audio inputs

1 audio input (jack 3.5mm)

Maximum output resolution

D-SUB(VGA), HDMI - FHD

Number of video outputs

1x D-SUB(VGA), 1x HDMI

Audio compression format

G711a, G711u, PCM, AAC, G722.1 G726 MP2L2

Video compression format

H.265, H.264

Playback speed

1/4x to +32x

Total flow

460 Mbps

Recording resolution

Up to 8 MP(inclusive)

Dimensions of the device (WxHxH), mm

380 x 315 x 52

Packing dimensions (WxHxH), mm

525 x 405 x 110

Gross weight, kg3

2.85 kg

Net weight, kg3

1.85 kg

USB on the rear panel

2 USB 3.1 Gen1

USB on the front panel

1 USB 2.0 (Type A)

Operating temperature mode

10...30 °C

Video Channels

Up to 16 IP channels

Operating system

TRASSIR OS (Linux-based)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
