Available for Import

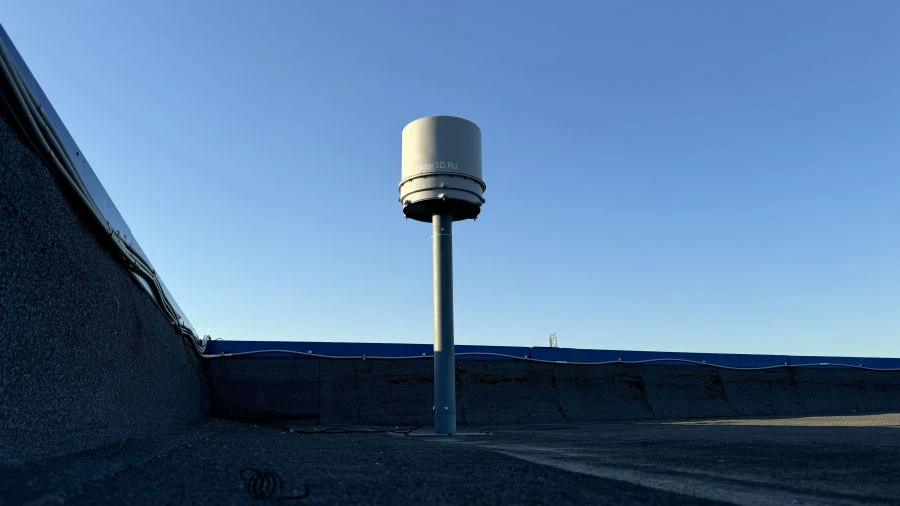

Object Radar Station "Repaynik-K" for UAV Detection and Tracking
Manufacturer:
SOZ LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
ORLS "Repeynik-K" is designed for detection and tracking of UAVs in the scanning sector of 360 degrees, at a distance of up to 15 km, altitude of up to 5 km and speed of up to 200 km/h on stationary objects.
Specifications
Number of simultaneously escorted targets, not less
Polyvinyl chloride plasticate, halogen-free composition pcs
Instrumental detection range
15
Number of simultaneously escorted targets
Polyvinyl chloride plasticate, halogen-free composition pcs
Frequency range
9.2...9.5
Azimuth field of view
360
Place angle
20
Speed of full azimuth view
2.5
Range resolution
2.5 m
Azimuth resolution
1.2
Carrier frequency/operating wavelength
9.455
Directional width
3
Type of coordinate system used to issue the target designation
Polar
Composition of information to be issued when issuing a target designation
Azimuth, estimated altitude, distance to object
Operating temperature range
-40...50 °C
Data exchange, issuance of target forms and target designations
Ethernet (RJ-45)
Possibility of networking several stations
Armoured glass
Integration with suppression systems (REB)
Armoured glass
Radiated power
2 W
Power consumption
65 W
Power supply voltage
220 V
Overall dimensions (DxWxH), m
0.3x0.46x0.65
Product weight
20.5 kg
Basic equipment
ORLS "Repeynik-K", painting of the station with standard colour (grey/white), packing material, training of one operator to work with ORLS (on the territory of the enterprise), 1 year warranty on the product.
Possible extension of the basic equipment
Telescopic tripod for temporary installation, camouflage colouring or colouring with infrared mission, various electronic warfare (EW) modules, operator's ARM (standard, tablet or IP65 protected laptop).
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
