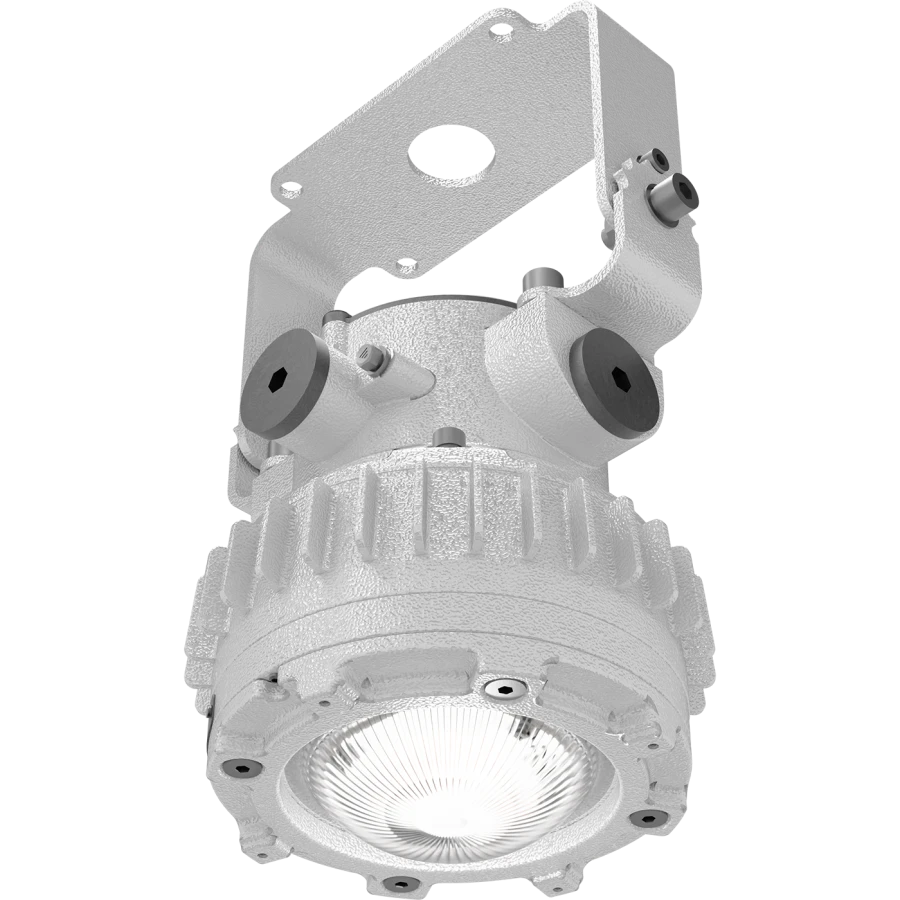

ONIX LED Ex/B 15W Explosion-Proof Light Fixture for Oil & Gas Industry
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry
ONIX LED Ex/B 15W Explosion-Proof LED Light Fixture Available for Import

ONIX LED Ex/B 15W Explosion-Proof LED Light Fixture for Industrial Use

LED Ceiling & Wall Lights
Manufacturer: LLC "MGK "LIGHT TECHNOLOGIES"
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Series of explosion-proof luminaires ONIX LED Ex for outdoor and indoor lighting of oil and gas industry enterprises, designed to replace luminaires with incandescent lamps up to 200W. The luminaire is a highly efficient solution with a high IP66 rating and the possibility of transit cable routing.

Specifications

Lamp type
LEDs
Type of luminaire
Point
Type of explosion protection
1Ex db IIC T6 Gb/ Ex tb IIIC T80oC Db, 1Ex db IIC T5 Gb/ Ex tb IIIC T95oC Db
Explosion-proof
Armoured glass
Mounting type
Swivel bracket
Type of supply current
AC/DC
Climatic execution (according to GOST 15150-69)
UHL1
Rated supply voltage
ASC: 12 V, 24 V, 36 V, 48 V, 230 V / DC: 12 V, 24 V, 36 V, 48 V, 230 V
IK code
IK07/2 J
Luminous flux ripple factor
<1%
Overall color rendering index
80
Correlated color temperature
3000...5000 K
Lower operating temperature value
-60 °C
Upper operating temperature value
40; 60 °C
Form
Round
Diffuser material
Tempered glass
Housing material
Aluminum
Degree of protection (IP)
IP 66
Power factor
>0,95
Protection class against electric shock
I
Height
283 mm
Width
165 mm
Power consumption
12...16 W
Luminous flux
1800...2200 lm
Length
212 mm
Net weight
4.6 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
