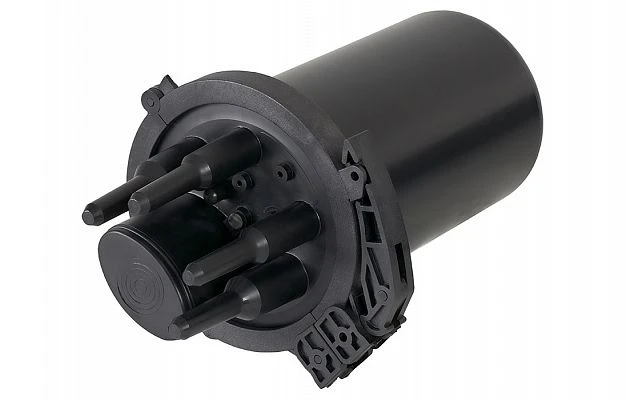

Optical Cable Joint MTOC-L for Self-Supporting Installations Available for Import

Optical Cable Joint MTOC-L for Self-Supporting Installations and Transits

Cable Accessories
Manufacturer: SSD OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Designed for the installation of suspended self-supporting OC, optical cables with a derived power element type "8" with a capacity of up to 72 OV. The coupling has an oval entry for transit loop of optical modules without cutting. The loop of modules is laid out on the tray on the opposite side from the cassettes. The method of sealing the housing with the headband is mechanical. It is carried out by means of elastic ring gasket and reinforced plastic clamp with self-tightening lock.

Specifications

Type or grade of material
Armlen
Equipment
Casing (headband, casing, clamp),Cassette KC-2445 with cover,KDZS 4525 sleeves, Tweezers for laying KDZS, TUT 33/8 tube for round bushings OK, Set of markers and ties, Silica gel (package)
Designation
MTOC-L
Type
Dead end
Profile
Cylindrical
Surface protection coating
Clamp, TUT
Diameter
188 mm
Resistance to mechanical influences
Single impact not less than 10 Joules
Length
32.4 cm
Weight
1.2 kg
Operating temperature
-60...70 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
