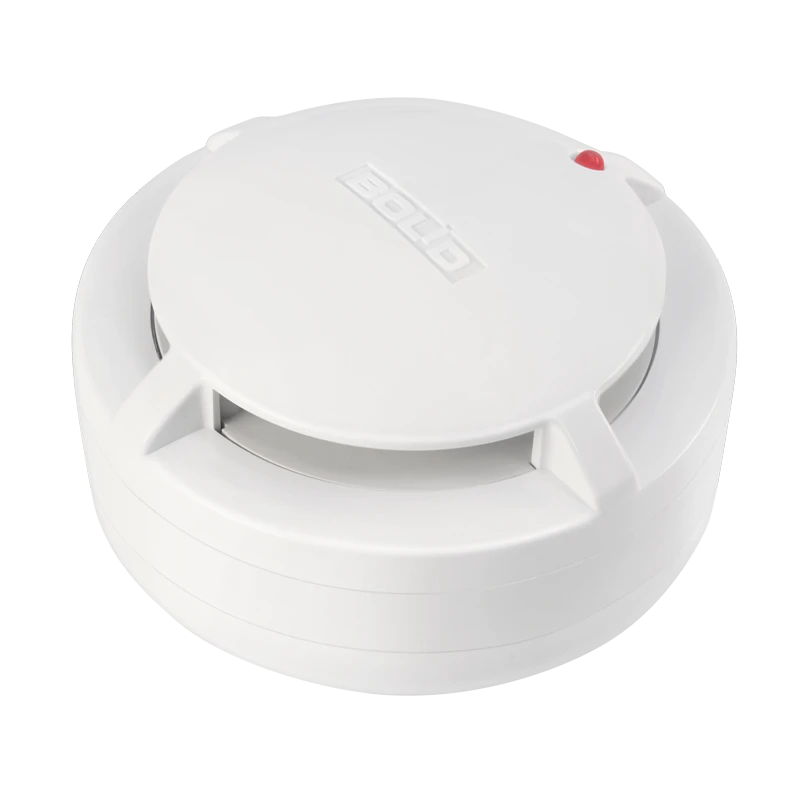

Optical-Electronic Addressable Smoke Detector DIP-34PA-03 for Fire Safety Applications
Manufacturer:
BOLID CJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
It is used in fire alarm systems and is designed to detect fires accompanied by smoke in enclosed spaces of various buildings and structures, by registration of optical radiation reflected from smoke particles and automatic formation of the fire signal. It is designed to work with the Signal-10 fire alarm control unit as part of the Orion integrated security system. Information exchange and power supply is carried out via an addressable threshold alarm loop.
Specifications
Power supply voltage (alarm loop)
9 to 30 V
Consumption current
Not more than 400 µA
Number of detectors to be connected in an alarm loop
Up to 10 pcs
Maximum active resistance of alarm loop wires
Not more than 100 ohms
Minimum insulation resistance between the wires of the alarm loop
at least 50 kOhm
Sensitivity
0.05 to 0.2 dB/m
Protection degree of the shell according to GOST 14254-2015
IP41
Operating temperature range
-30 to +55 °C
Overall dimensions of the device
diameter: 100mm; height: 47mm
Instrument weight
max. 0.2 kg
Average lifetime of the device
10 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
