Optical Fiber Communication Cable OKA-M for Suspension

Available for Import

Optical Fiber Communication Cable OKA-M for Reliable Suspension Applications

Individual Sheathed Fibre Cables

Manufacturer: ALTAY-KABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

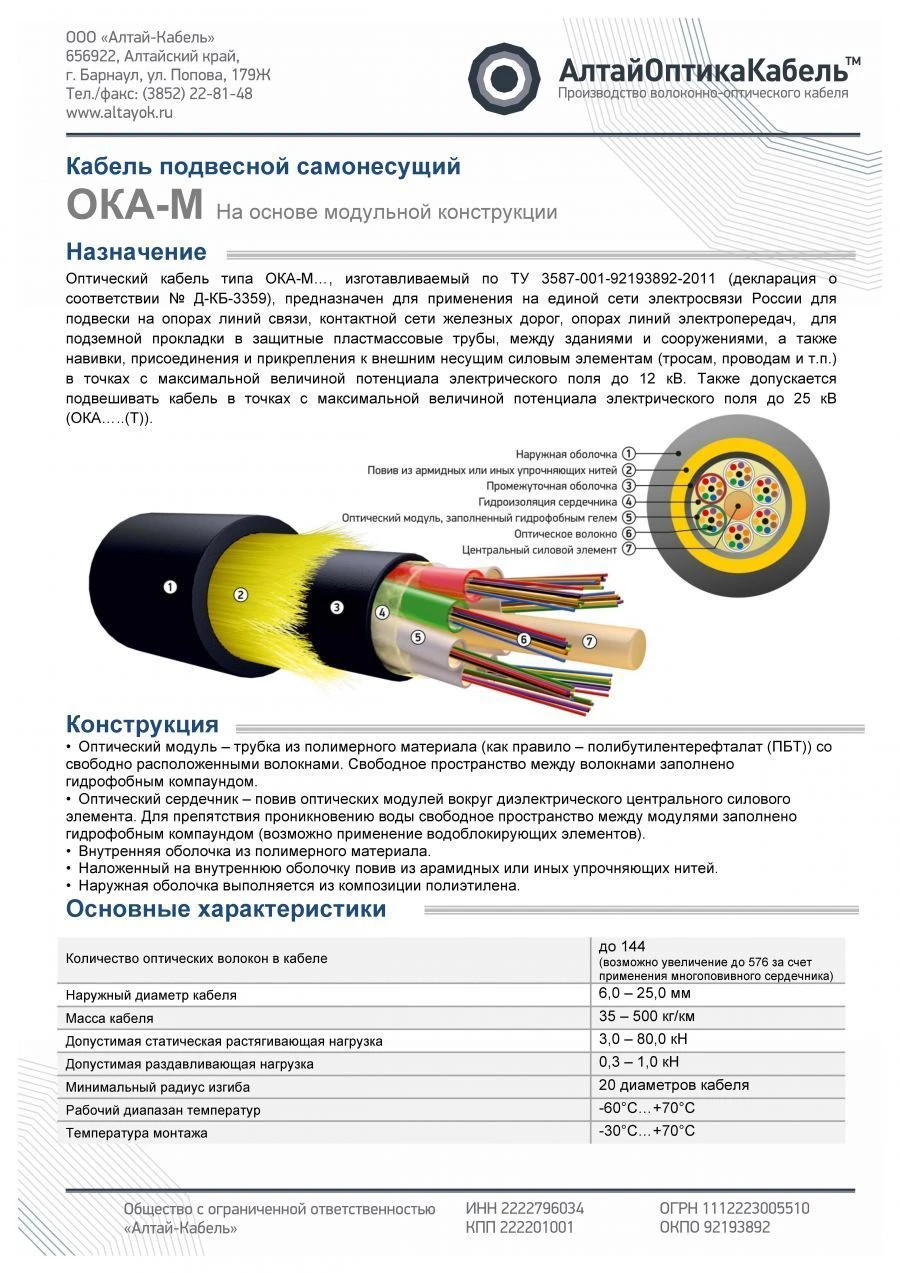

Fibre-optic cable for suspension on communication line supports, railway contact network, transmission line supports at points with electric field potential up to 25 kV, lighting poles, between buildings and structures, on external facades of buildings, can be used in cable trays, cable channels, cable ducts, in pipes, in tunnels, inside buildings and structures, including in the ground with the use of protective pipes. The cables can contain up to 288 single-mode standard optical fibres (OV type G.652, G.657). The fibres manufactured in the territory of the EAEU member states are used in production.

Attenuation coefficient at the working wavelength, dB/km: for ?=1310nm not more than 0.35; for ?=1550nm not more than 0.22. Cable operating temperature from minus 60º? to plus 70º?.

Permissible tensile force is specified in the mark.

Specifications

Dimensions

5-25

Connection

Presence of protective covers

Armoured glass

Presence of conductive core

Dielectric design

Armoured glass

Cable type

Self-supporting

Number of optical fibers in the cable

2...288 pcs

Scope of application

for aerial laying (dd); for indoor and outdoor installation in fixed objects and structures (c)

Wavelength of single-mode fiber, µm

1.55; 1.31

Attenuation coefficient, dB/km

Single-mode fiber type

with unbiased dispersion ; with reduced losses at small bending radii ; with non-zero dispersion for broadband data transmission ; with biased non-zero dispersion ; with biased cutoff wavelength ; with biased zero dispersion .

Type of containment material

medium; high density polyethylene

Type of optical fiber in the cable

Single-mode

Number of optical fibers in the cable

0...288 pcs

Cable type

for aerial laying (hd)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
