Outdoor Telecommunications Cabinet for Equipment SHU-P-38U-700x2145x750-KN-Nt

Telecom Equipment Components

Manufacturer:STR-TELECOM LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

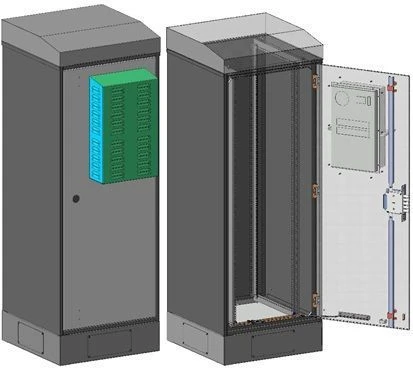

???-?-38U-700?2145?750-??-Nt. Outdoor telecommunication cabinet for telecommunication equipment installation on the foundation. Enclosure with mounting profiles 19" height 24U.

The cabinet is designed to install the following equipment: VRU-19-3U = 1 piece, air conditioner 800W = 1 piece, thermostat NC = 1 piece, heater 220 V, 300 W = 1 piece, sensors = 1 piece. Overall dimensions ?????? mm = 750?2145?750.

Plinth height 200 mm. IP 55. External structural elements of the cabinet are made of high-strength steel 1,5 mm thick and have protective anticorrosive epoxy powder coating with preliminary phosphating of surfaces.

Main structural elements: - functional compartment; - plinth; - pitched roof; - eyebolt for loading and unloading works.

Specifications

Number of processor cores

Slots

Number of processors

Weight

200 kg

Length

750 mm

Height

2145 mm

Width

700 mm

Type of accommodation

outdoor for floor mounting

Type of construction

unassembled

Usable depth

750 mm

First characteristic digit of the degree of protection designation

Second characteristic digit of the degree of protection designation

Type of floor support

Armoured glass

Availability of fasteners to the support (pole)

Type of coloring

Powder

RAL color

7035

Material

Cold-rolled steel

Material thickness

1.5 mm

Upper limit of operating temperature

60 °C

Heater

Armoured glass

Type of accommodation

outdoor

Height, U

Operating temperature range

-40...60 °C

Device type

Outdoor telecommunication cabinet

Height/story (unit)

Form factor (rack-mounted, freestanding)

freestanding

Type of optical ports

Depth

750 mm

Protection class

IP55

Equipment

Insulation thickness

10 mm

19" profile for mounting equipment

Armoured glass

Usable height, U

Resistance to mechanical external influencing factors (EIF)

according to gost 17516.1-90 (IEC 721-3-3-87) - m42

Resistance to mechanical (BBF) effects

according to iec 62262 class ik08

Cooling capacity

1000 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
