Outdoor Telecommunications Cabinet SHU-P-650x1000x600-VC for Surveillance Applications

Telecom Equipment Components

Manufacturer: STR-TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

???-?-650?1000?600-??. Telecommunication outdoor cabinet designed for placement of video surveillance equipment, photo and video fixation of traffic violations. Mounting on a concrete base.

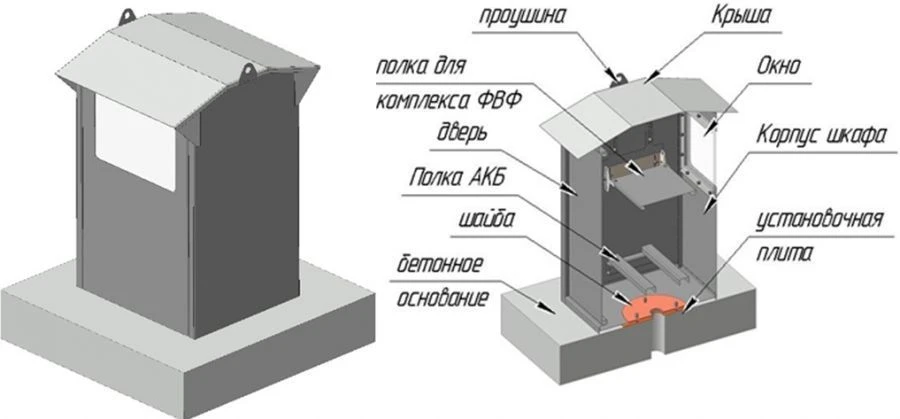

The product is an outdoor vandal-proof telecommunication cabinet designed for round-the-clock protection of the installed inside the complex of photo-video registration of traffic violations (hereinafter referred to as the PVF complex), batteries and/or moulage (imitator) of the PVF complex from illegal actions of third parties, as well as from the impact of precipitation, dirt, dust and other weather and road conditions. The metal box is equipped with an upper shelf for installation of FVF complexes. The design provides height adjustment of the upper shelf (for installation of various FVF complexes in such a way that metal parts do not block the view for radar, camera and illumination spotlight).

The shelf design provides vertical and horizontal adjustment of the angle of inclination of the photofixation complex in the cabinet.

Specifications

Type of accommodation

outdoor

Operating temperature range

-40...50 °C

Connector

Cable type

Device type

Outdoor telecommunication cabinet

Depth

500 mm

Availability of fasteners to the support (pole)

Form factor (rack-mounted, freestanding)

Type of optical ports

Protection class

IP54

Equipment

RAM

Number of processor cores

Slots

Number of processors

Weight

110 kg

Length

500 mm

Height

1000 mm

Width

650 mm

Type of accommodation

outdoor for surface mounting

Type of construction

unassembled

Usable depth

1000 mm

First characteristic digit of the degree of protection designation

Second characteristic digit of the degree of protection designation

Type of floor support

Availability of fasteners to the support (pole)

Armoured glass

Type of coloring

Powder

RAL color

7035

Material

Cold-rolled steel

Material thickness

1.5 mm

Upper limit of operating temperature

SBVVBG °C

Availability of a shelf for mounting equipment

Armoured glass

Availability of radio-penetrating glass

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
