Outdoor Telecommunications Cabinet SHU-V-07 450x400x170

Available for Import

Outdoor Telecommunications Cabinet SHU-V-07 - Reliable Weatherproof Solution

Telecom Equipment Components

Manufacturer: STR-TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The design of the cabinet provides reliable protection against climatic influences. The degree of protection of the cabinet from external conditions is not less than IP65. The body of the product is made in vandal-proof version of steel thickness of 1.5 mm in the form of all-welded construction.

It is painted with light grey powder paint (RAL 7035). The enclosure door is made of 1.5 mm thick steel. The door is mounted on concealed internal hinges, equipped with a mechanical lock with a single key "master" for a group of cabinets.

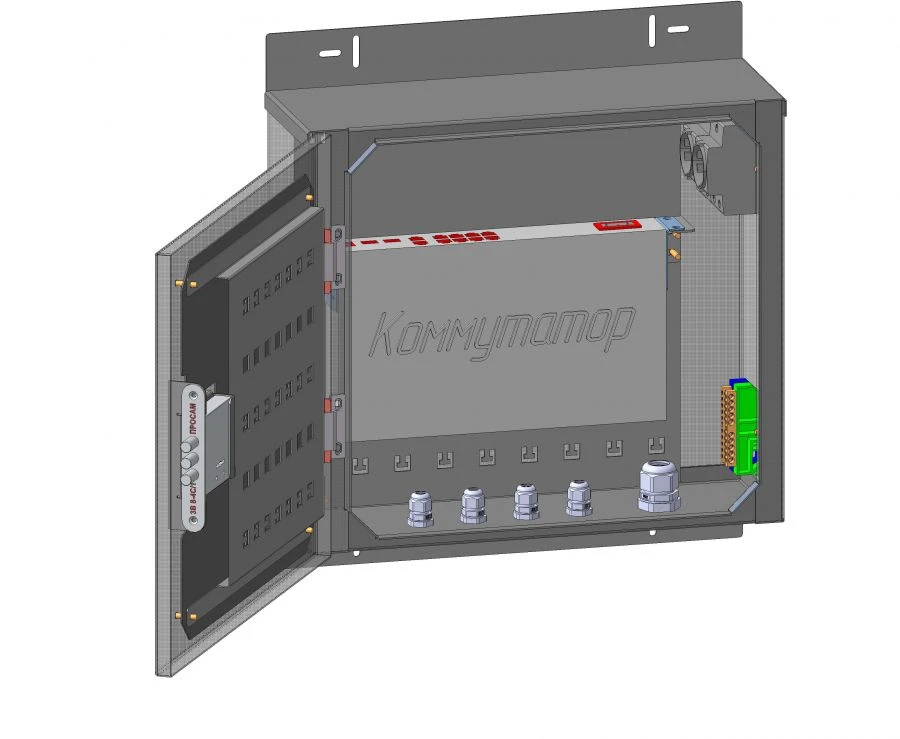

In the lower plane of the cabinet made 4 germo inputs PG9 and one PG21 for telecoms and power cables. DIN-rail and mounting plate are provided inside the cabinet for equipment fastening. The design of the cabinet provides free access for installation of equipment.

The cabinet can be mounted on a support (street pole) using mounting tape (for supports of different cross-section and profile). Mounting with attachment to the support is carried out in at least 2 points. The design provides for mounting on the wall.

Specifications

Type of accommodation

Wall-mounted

Type of construction

Unassembled

Removable side panels

Height

400 mm

Width

400 mm

Usable depth

170 mm

First characteristic digit of the degree of protection designation

Second characteristic digit of the degree of protection designation

Type of floor support

Availability of fastenings to DIN-rail

Armoured glass

Type of front door(s)

Solid

Type of coloring

Powder

RAL color

7035

Material

Cold-rolled steel

Material thickness

1.5 mm

Insulation thickness

10 mm

Operating temperature

-40...50 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
