Overflow Prevention Sensor DLOK-PP for Tanker Safety and Monitoring

Level Measurement Instruments

Manufacturer: LOKOIL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

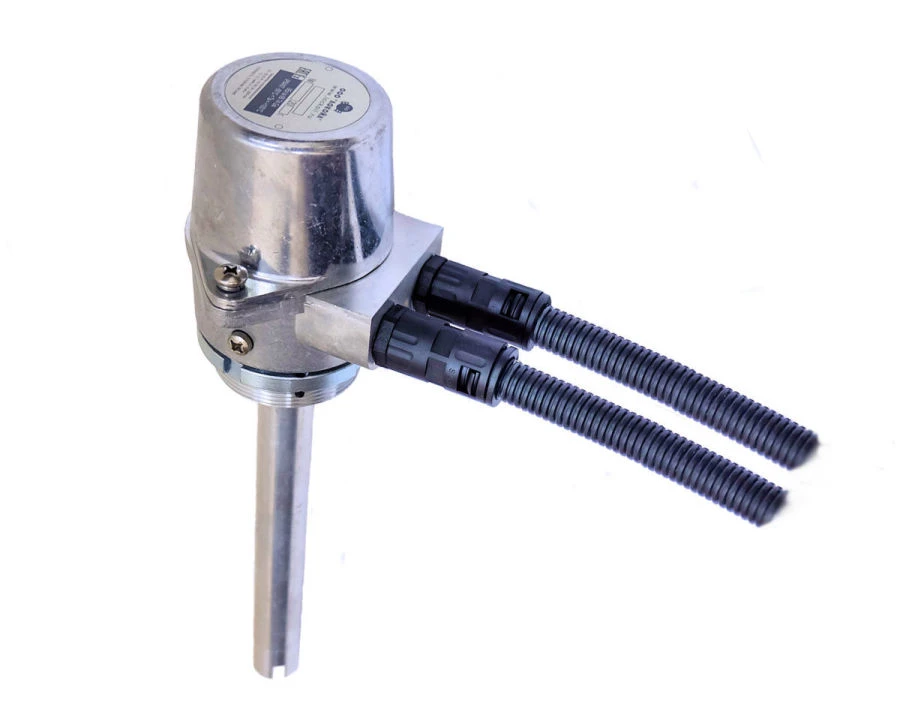

Sensor DLOK-PP explosion-proof 0?x ia IIB T4 to prevent overflow (overfill prevention) of the tank truck compartment when it is loaded with oil products. The sensor does not belong to measuring instruments and has no accuracy characteristics. It is mounted on the tanker's manhole cover, supplied with G2 nut and O-ring.

Conforms to EN 13922:2003. In-line connection of sensors on a five (5) wire line. Explosion-proof version with marking on the outside of the sensor cover.

Metal sensor cover with rubber seal protects the sensor and wiring elements from water and dirt. The height of the cover allows the length of the sensor tube to be adjusted in the range of 50 mm.

Specifications

Power supply voltage

15 V

Degree of protection against external influences, IP

Ambient temperature range, C

-50...100 °C

Fluid operating temperature range, C

-40...100 °C

Current consumption, mA

no more than 20

Voltage Ui, V

22 V

Current Ii, mA

250

Pi power

0,7

Inductance Li, mHn

negligibly small

Capacity Ci, µF

0,1

Capacity of Co, µF

1,1

Inductance Lo, mGn

Current Io, mA

240

Outside diameter of protective corrugated sleeve, mm

15,8

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
