Patient Lifting and Moving System - OrtoRent PRM-02 for Safe Mobility
Manufacturer:
Ortorent LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

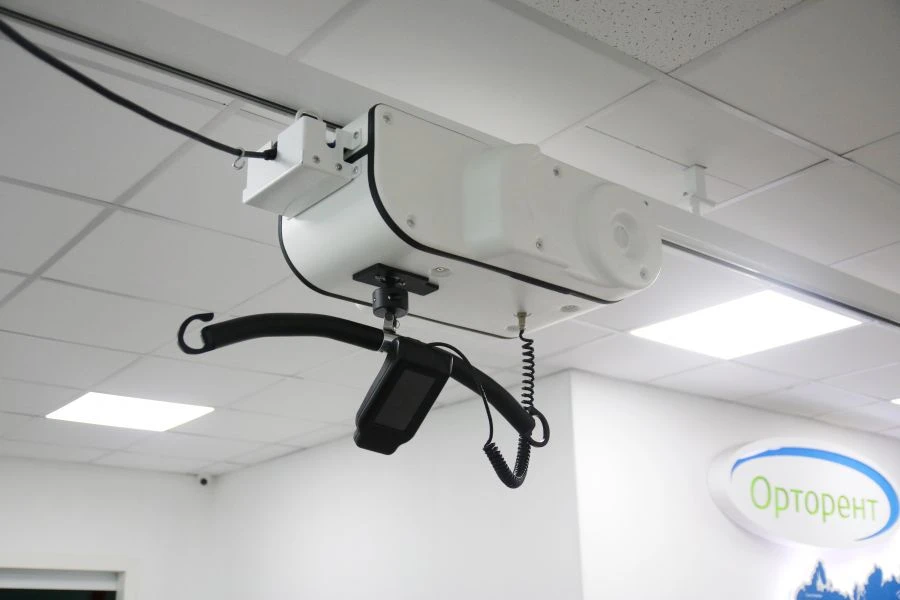

The system "ORTHORENT PRM-02" is designed for dynamic support of the patient's body weight during therapeutic walking exercises; preventing the patient from falling. The system is fixed on the ceiling or to the walls (depending on the set of accessories) and generally consists of a lifting unit, control panel, weight indication device, a set of rails and ceiling and/or wall mountings (depending on the set of accessories supplied), patient's body support system, fixing kit.
Specifications
Type of product according to PP RF 616
Medical devices, including surgical, other, not included in other groupings
Set composition
Lifting unit with electric carriage; Control panel; Automatic reel with electric cable; Spreader 650 mm; Straight ceiling rail (profile 75 mm) 1000 mm; Baffle plate; Cover plate
Overall dimensions of the lifting unit with electric carriage (without rails), length
650 mm
Overall dimensions of the lifting unit with electric carriage (not including rails), width
410 mm
Overall dimensions of the lifting unit with electric carriage (without rails), height
275 mm
Overall dimensions of the control panel, width
111 mm
Overall dimensions of the control panel, length
198 mm
Overall dimensions of the control panel, height
78 mm
Weight of the control panel
600 year
Straight ceiling rail (profile 75 mm), mm
1000...6000 mm
Height of ceiling rail fastening post, adjustable, mm
100...2000 mm
Length of lifting block strap
2.2 m
Maximum load on the body support system (support belts, nets), not more than, kg
180 kg
Weight compensation, range, kg
0...80 kg
Maximum cable length in automatic reel, m
15 m
Power supply (lifting unit with electric carriage)
230 W
Power supply (lifting unit with electric carriage)
SBVVBG
Power consumption of the product (at maximum load of 80 kg) not more, VA
2460
Control unit moves freely with the patient in dynamic weight support mode
availability
In manual control mode (if it is necessary to move the patient using body support systems), moving the control unit is not possi
availability
The control panel is equipped with a colour touch screen display with touch-screen technology.
availability
Dynamic patient weight support mode is adjustable by patient weight and length of support slings
availability
Lifting unit supports operation with the device for patient weight indication
availability
Automatic reel with electric cable includes rewinding mechanism for connecting cable
availability
In the free state, the lifting unit maintains its position on the rails, does not roll, move or tilt to any of the
availability
Time of system operating mode establishment, not more, min
5
System provides 360° rotation in both directions, allowing the patient to practice walking sideways and backwards
availability
With this device it is possible to perform the following exercises: a)transfer of the centre of gravity of the body b)balance ex
availability
Treatment with disinfectants
availability
Average MTBF, at least, hrs
10000
Average service life of the system, years
5 year
Warranty period of operation, months.
B1/B8 2100/900 MHz
Maximum system load (maximum patient weight supported by slings), not more than, kg
275 kg
Continuous operation per day, at least, hrs
8
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
