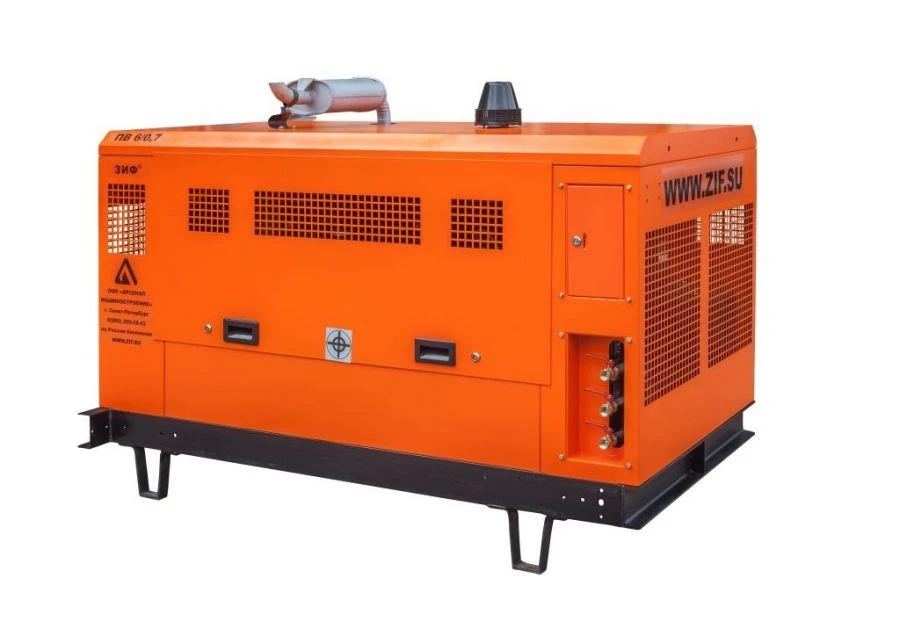

Portable Diesel Compressor Station ZIF-PV 8/0.7 (ARM9-22.1) for Versatile Applications

Compressor type: screw. Drive type: internal combustion engine (ICE) Nominal volumetric capacity, nm3/min, not less - 8,0 Final working pressure (overpressure), MPa - 0.7 Compressible gas - air. Operating temperature range: a) from minus 25 to +40 in basic configuration b) from minus 40 to +40 with "North" package c) from minus 25 to +50 in the "Tropic" package.

Operating mode: automatic Oil content in compressed air at nominal mode, g/m3, not more: 0,0035 Rated power, kW - 60 Overall dimensions (DxWxH), mm - 200012441478 Weight, kg - 1170. Under TU 3643-003-76260790-2020 "Compressor stations mobile (portable) diesel ZIF-PV types: MZA, ARM, ARM-MXD, ARM-MKXD. Technical conditions." produces a range of single-type diesel mobile compressor stations ZIF-PV, types: MZA, ARM, ARM-MKSD, ARM-MKECD.
