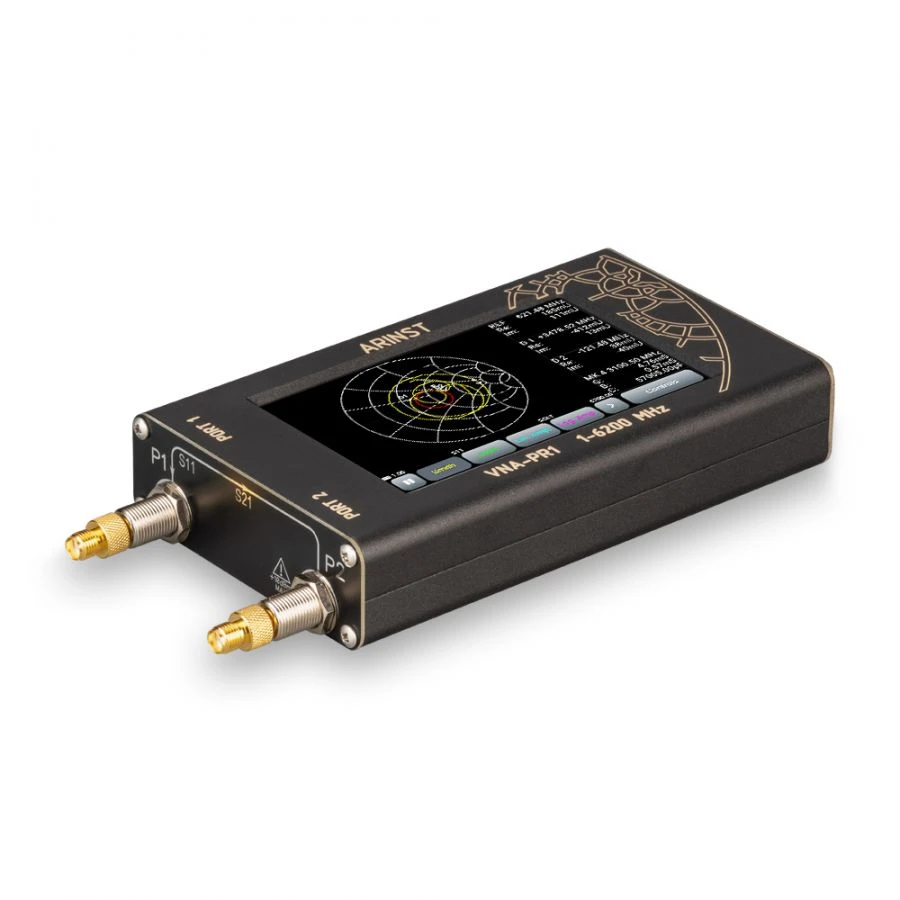

Portable Two-Port Vector Network Analyzer ARINST VNA-PR1 for RF Device Testing

Electrical Measurement Instruments

Manufacturer: KROKS PLUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Portable two-port vector circuit analyser ARINST VNA-PR1 is designed for measuring the matching characteristics of passive and active radio devices (antennas, cables, filters, attenuators, amplifiers), checking the integrity of high-frequency cables, measuring their parameters and other amateur radio measurements. The instrument measures S11 and S21 parameters, voltage standing wave ratio (VSWR), impedance, admittance, phase, group delay time (GDT), loss and distance to fault in the cable. We provide free software under WINDOWS to control two-port vector circuit analysers ARINST VNA-PR 1, ARINST VNA-DL 1-8800 MHz. The analyser is made in a rugged aluminium case as a mobile device with autonomous power supply and is designed primarily for work directly at the site, because of its low weight and compact size and low power consumption.

Specifications

Equipment

Device

Operating frequency range

1...6200

Type of device

Vector analyzer

Interfaces

USB

Input connectors

SMA(male)

Screen availability

Got it

Screen diagonal, inches

Screen type

Touch

Battery availability

Got it

Battery capacity

5000

Battery life

2.5

Length

205

Width

125

Height

SBVVBG

Weight

400 year

Mark

Arinst

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
