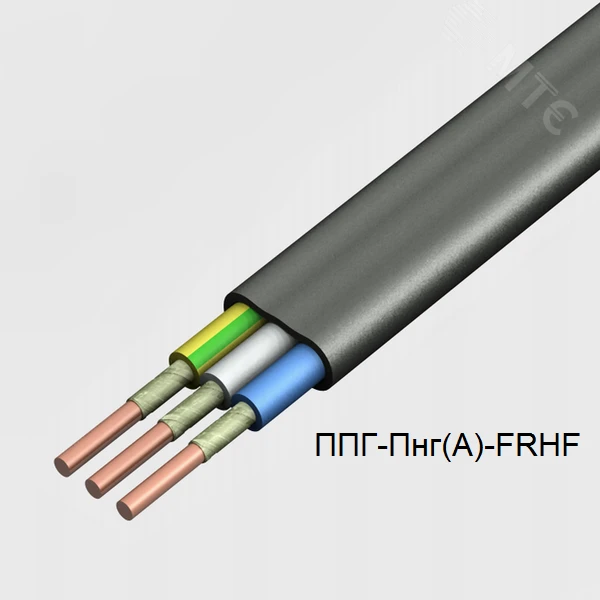

Power Cable with Copper Conductors - PPG-Png(A)-FRHF-0.66-TU
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry
Power Cable with Copper Conductors, PPG-Png(A)-FRHF-0.66-TU Available for Import

Power Cable with Copper Conductors, PPG-Png(A)-FRHF-0.66-TU for Electrical Installations

Copper Power Cables 1kV
Manufacturer: NKZ CABLE-CENTER LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Power cables for rated voltage 0,66 kV, with copper conductors number 3, cross-section from 1,5 mm2 to 2,5 mm2 inclusive, with insulation and sheathing made of polymer compositions, halogen-free, not spreading combustion in category A, fire-resistant, flat, grade BCP-Png(A)-FRHF. The products are manufactured in accordance with TU 27.32.13-002-05459832-2018 "Power cables with plastic insulation for rated voltage of 0.66 and 1 kV. Technical conditions".

Serial production. Conforms to the requirements of ?? ??

004/2011 "About safety of low-voltage equipment". OKPD 2 OK 034-2014 code: 27.32.13.111.

Specifications

Rated AC voltage
0.66 kV
Material of conductive cores
Copper rod
Insulation material of conductive cores
Polymer compositions
Availability of reservations
no
Armor type
no
Outer sheath material (if no armor)
Polymer compositions
Material of protective hose (if armor is available)
no
Availability of metal screen
no
Fire hazard class
P1a.1.1.2.1; P1b.1.1.1.2.1
Cable cross-sectional shape
Round
Design of conductor core(s)
Monofilament
Nominal cross-section of conductive cores
2.5 mm²
Number of conductive cores
3
Mark
Power cable
Design
Number of cores and cross section
Cable shape
Flat
Core material
Copper rod
Insulation material
Polymer compositions
Sheath material
Polymer compositions
Core diameter
1.74 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
