Durable Power Cable with Copper Conductors, 0.66kV, Model ВВГ-Пнг(А)-LSLTx-0.66
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry
Power Cable with Copper Conductors, PVC Insulation and Sheath, 0.66kV, Model ВВГ-Пнг(А)-LSLTx-0.66 Available for Import

Power Cable with Copper Conductors and PVC Insulation, 0.66kV, Model ВВГ-Пнг(А)-LSLTx-0.66

Copper Power Cables 1kV
Manufacturer: NKZ CABLE-CENTER LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

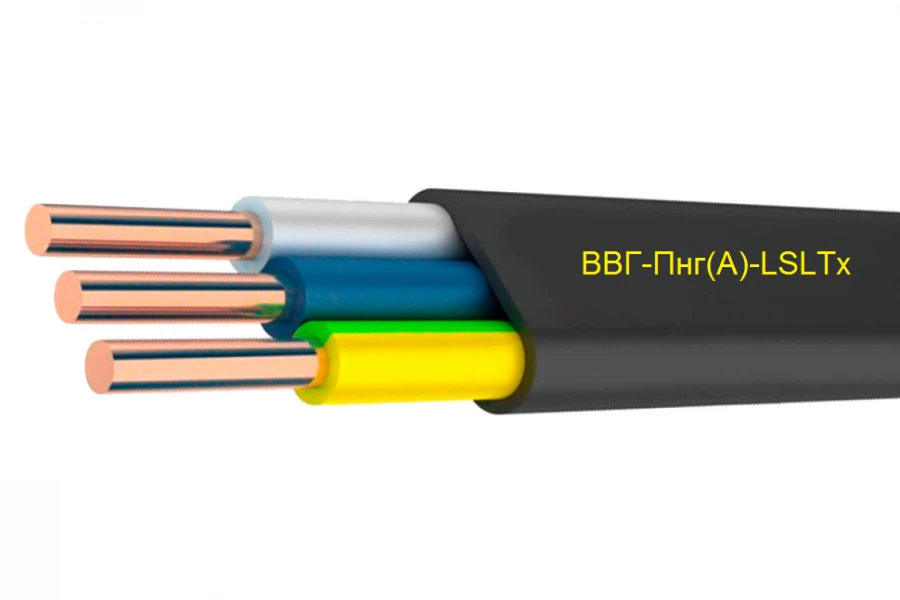

Power cables for rated voltage 0,66 kV, with copper conductors number from 2 to 3 inclusive, cross section from 1,5 mm2 to 6 mm2 inclusive, with insulation and sheath made of polyvinylchloride plasticate, reduced fire hazard, not spreading combustion in category A, with low toxicity of combustion products, round, grade VVG-Png(A)-LSLTx. The products are manufactured in accordance with TU 27.32.13-002-05459832-2018 "Power cables with plastic insulation for rated voltage 0,66 and 1 kV. Technical conditions".

Serial production. Conforms to the requirements of ?? ??

004/2011 "About safety of low-voltage equipment". OKPD 2 OK 034-2014 code: 27.32.13.111.

Specifications

Rated AC voltage
0.66 kV
Material of conductive cores
Copper rod
Insulation material of conductive cores
polyvinyl chloride plasticate
Availability of reservations
no
Armor type
no
Outer sheath material (if no armor)
polyvinyl chloride plasticate
Material of protective hose (if armor is available)
no
Availability of metal screen
no
Fire hazard class
P1a.1.2.1.2; P1b.1.2.1.2.
Cable cross-sectional shape
Round
Design of conductor core(s)
Monofilament
Nominal cross-section of conductive cores
6 mm²
Number of conductive cores
3
Mark
Power cable
Design
Number of cores and cross section
Cable shape
Flat
Core material
Copper rod
Insulation material
polyvinyl chloride plasticate
Sheath material
polyvinyl chloride plasticate
Core diameter
2.7 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
